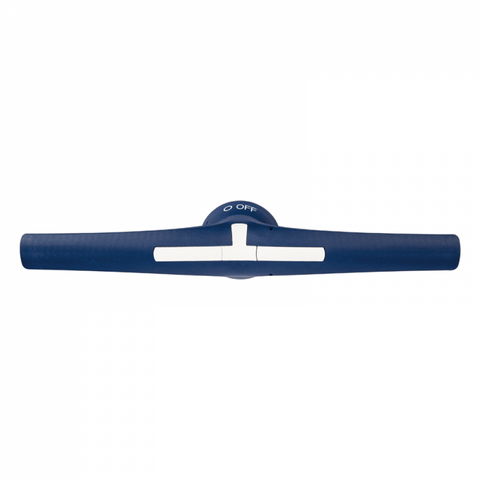

Telergon Direct manual handle, size 4 Part number D5LLI32

This direct manual handle is designed for size 4 enclosures and is used to operate a disconnect switch directly from outside the panel. It is fitted to the switch shaft to allow local, on/off control without opening the enclosure door. This type of handle is typically specified where direct manual...
Vendor: Telergon
Rubicon Industrial Technology is the exclusive South African distributor for Telergon.
Availability: In stock
Product type: Control Panel
Please hurry! Only 5 left in stock
Description
Description
x

This direct manual handle is designed for size 4 enclosures and is used to operate a disconnect switch directly from outside the panel. It is fitted to the switch shaft to allow local, on/off control without opening the enclosure door. This type of handle is typically specified where direct manual operation of isolators is required within control panel installations.

Specifications
Specifications
x
SeriesS5F
Rated thermal current Ith at 40º C125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 1800A, 2000A
Rated insulation voltage Ui1000 V
Rated impulse withstand voltage Uimp8 kV for up to 200A, 12 kV for above 200A
AC Rated operational current Ie AC21A125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 1800A, 2000A
AC Rated operational current Ie AC22A125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 1800A, 2000A
Short-circuit making capacity Icm13 kA (peak) for 125A - 200A, 20 kA (peak) for 250A - 800A, 60 kA (peak) for 1000A and 1250A, 75 kA (peak) for 1600A - 2000A
Short-time withstand current Icw7 kA rms for 125A - 200A, 12 kA rms for 250A - 800A, 25 kA rms for 1000A and 1250A, 50 kA rms for 1600A - 2000A
Number of mechanical operations8000 cycles for 125A - 200A, 5000 cycles for 400A - 800A, 3000 cycles for 1000A and 1250A, 600 cycles for 1600A - 2000A
Documents
Documents
x
Download Datasheet
