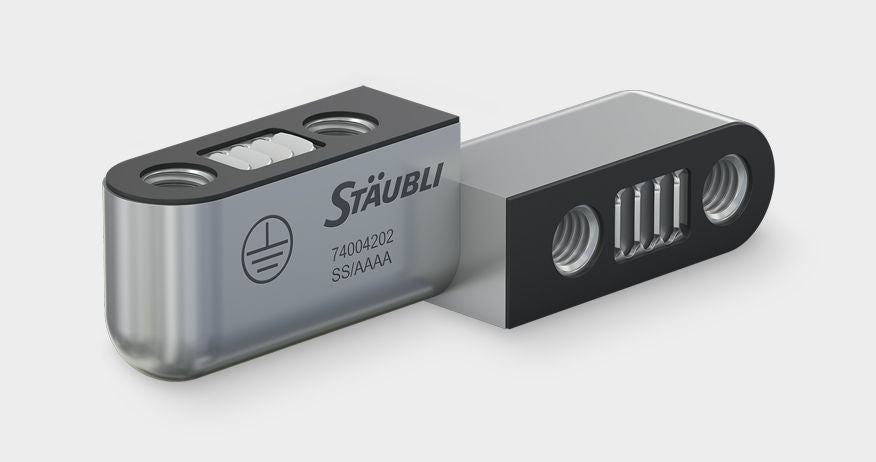

Staubli EGH-061/SS Grounding hinge with plug and socket side

Product Overview
The 19.0303 grounding hinge provides a reliable electrical connection between cabinet doors and frames while serving as a mechanical hinge. It eliminates the need for separate grounding braids and ensures durable, low-impedance grounding for stainless-steel enclosures.

Key Features:

·        Integrated ground path – Uses MULTILAM contacts for consistent conductivity.

·        Dual-function design – Combines hinge and grounding in one unit.

·        IP66 sealing – Protects against dust and moisture.

·        Maintenance-free – No lubrication required.

·        Compact build – Suitable for confined spaces.

·        Improved EMC – Low impedance compared to grounding straps.

·        Quick removal – Door can detach without losing ground contact.

Technical Specifications:

·        Article No.: 19.0303 (EGH-061/SS)

·        Material: Stainless steel

·        Protection: IP66

·        Contact system: MULTILAM

·        Mounting: Door/frame hinge connection

·        Max depth: 8 mm

·        Environment: Indoor/outdoor industrial enclosures

Compatible Accessories:

·        EGH-061 variants: 19.0304 / 19.0305 / 19.0306

·        O-ring/sealing kit

·        Mounting hardware set

Compliance & Certifications:

·        IP66 rated

·        EMC-compliant grounding path

·        RoHS-compliant materials

Applications
Ideal for stainless-steel control panels, outdoor enclosures, and automation cabinets requiring secure electrical bonding and environmental protection.
