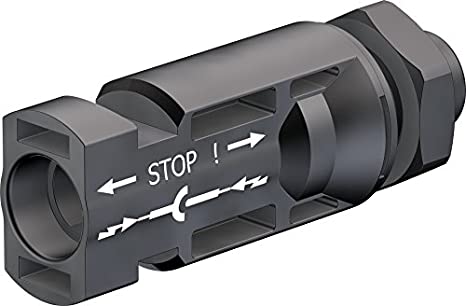

Staubli PV-ADSP4-S2/6 Panel receptacle, male, 6mm²

The Staubli PV-ADSP4-S2/6 is a robust male panel receptacle designed for photovoltaic systems. It supports cables up to 6 mm² and ensures a secure, weatherproof connection, optimised for reliable performance in demanding solar applications. Key Features Male panel receptacle compatible with PV system connectors Suitable for cable cross-section up to...
Vendor: Staubli (Multi-Contact)
SKU: 32.0079P0001-UR
Availability: Out Of Stock
Product type: Solar PV Balance Of System
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x

The Staubli PV-ADSP4-S2/6 is a robust male panel receptacle designed for photovoltaic systems. It supports cables up to 6 mm² and ensures a secure, weatherproof connection, optimised for reliable performance in demanding solar applications.

Key Features

  • Male panel receptacle compatible with PV system connectors
  • Suitable for cable cross-section up to 6 mm²
  • High resistance to UV radiation and harsh weather conditions
  • Easy and secure installation with reliable locking mechanism
Specifications
Specifications
x
Connector Type
Male Panel Receptacle
Cable Cross-section
6 mm²
Rated Current
Up to 50 A (depending on cable type)
Rated Voltage (DC)
1000 V DC
Contact Resistance
< 0.5 mΩ
Protection Degree
IP67 (when mated)
Temperature Range
-40°C to +85°C
Insulation Material
PPE/PS Thermoplastic
Flammability Rating
UL 94-V0
Standards Compliance
IEC 62852, UL 6703 certified
