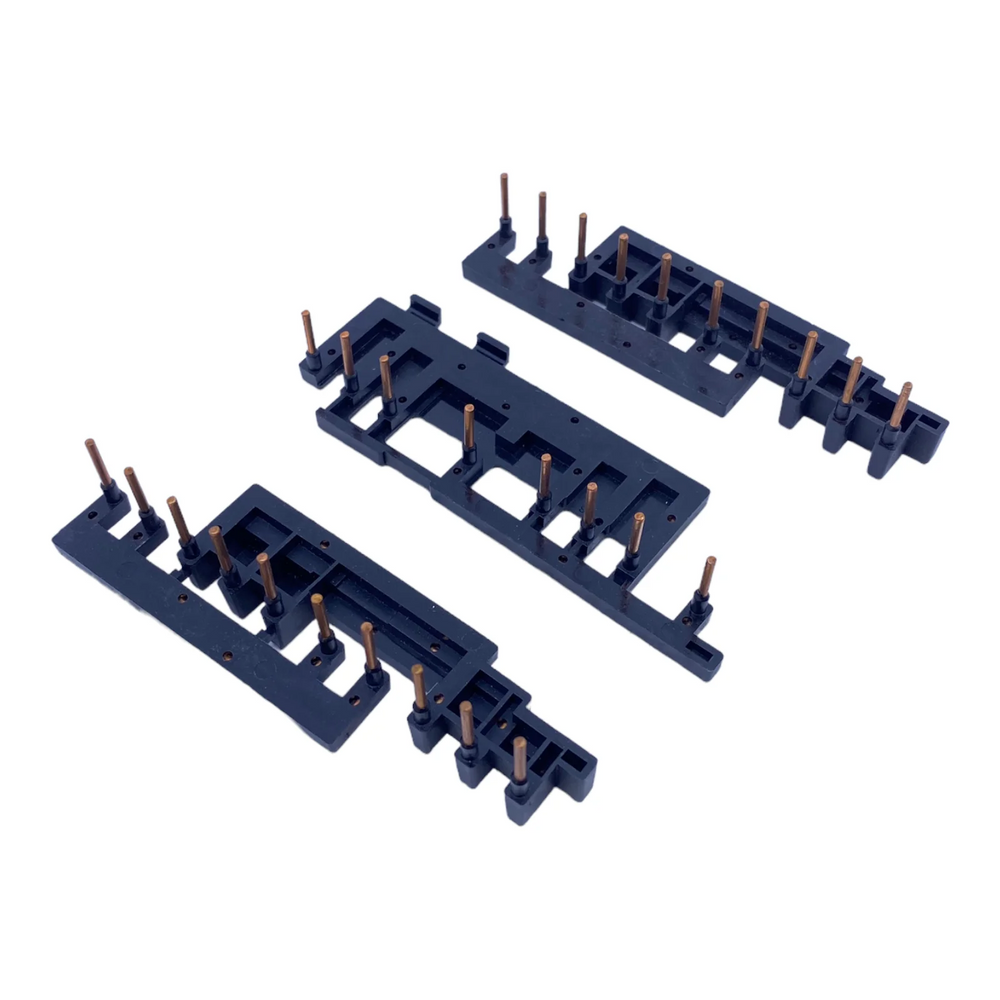

Siemens Wiring kit for reversing starter, size S00

Product Overview

Comprehensive electrical and mechanical wiring kit specifically designed for reversing starter configurations in Size S00 applications. This integration kit provides essential mechanical interlocking functionality for reversing motor control applications, ensuring safe and reliable operation by preventing simultaneous energization of conflicting contactor combinations. Engineered for professional installation in industrial motor control systems requiring directional switching capabilities.

Key Features

• Size S00 Compatibility: Specifically engineered for Size S00 reversing starter applications
• Electrical & Mechanical Integration: Complete wiring solution with mechanical interlocking components
• Mechanical Interlocking: Prevents simultaneous activation of forward and reverse contactors
• Reversing Starter Configuration: Enables safe motor direction switching in industrial applications
• Professional Design: Engineered for reliable installation and long-term operation
• Industrial Grade: Built to withstand demanding industrial environments

Technical Specifications

• Application: Wiring kit for reversing starter size S00
• Type: Electrical and mechanical including mechanical interlocking
• Net Weight: 0.038 kg
• Packaging Dimensions: 46 x 106 x 50 mm
• Country of Origin: Germany
• EAN: 4011209279957

Applications

Essential for motor control applications requiring:

• Reversing motor operations in industrial machinery
• Conveyor systems with bidirectional movement
• Pumps requiring flow direction control
• Industrial automation systems with reversing requirements
• Manufacturing equipment with forward/reverse functionality

Safety & Functionality

The mechanical interlocking feature is critical for safety in reversing applications, preventing electrical faults and equipment damage that could occur from simultaneous energization of opposing contactors. This kit ensures proper electrical isolation and mechanical prevention of unsafe operating conditions, contributing to overall system reliability and personnel safety.

Installation & Compatibility

Designed for integration with Size S00 motor control systems, this wiring kit provides the necessary electrical connections and mechanical interlocking components for professional reversing starter installations. The kit includes all essential components for proper mechanical interlocking functionality in accordance with industrial safety standards.

Compliance & Certifications

• RoHS Compliant: Since July 1, 2006
• Export Control: ECCN: N / AL: N
• REACH Regulation: Compliant with current substance restrictions
• Product Class: C - Products manufactured to order, non-returnable
• WEEE Take-Back: Obligation applicable

Product Classification

• Product Lifecycle: PM500 - Discontinued Product or end of PLM & Support
• LKZ_FDB/CatalogID: CC-IC10
• Product Group: 3729
• Group Code: R711

Packaging Information

• Quantity Unit: 0 Piece
• Packaging Quantity: 1
• Package Size Unit: MM
• Net Weight: 0.038 kg

Environmental Information

This product is manufactured in Germany in compliance with environmental regulations. WEEE take-back obligation applies to this product. The compact design and lightweight construction minimize environmental impact during transportation and support sustainable industrial automation practices.

Download existing graphical data for this product:

Technical documentation and resources are available through Siemens official channels:

• SIRIUS 3RA23 Reversing Contactor Assemblies
• SIRIUS 3RT Contactors Manual
• Star-Delta Contactor Assemblies Information
• SIRIUS Star-Delta Combinations Technical Guide

Successor Product Information: For current applications, the successor product SIRIUS 3RA2913-2AA1 provides enhanced functionality with improved design and compatibility with modern SIRIUS modular systems.
