Product Overview

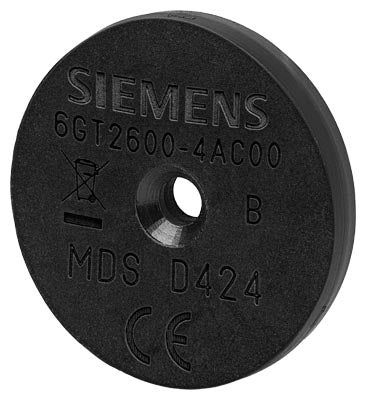

Transponder MDS D424 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 27x 4 mm (DxH). Article Number: 6GT2600-4AC00.

Key Specifications

Memory & Technology:

• 2000 bytes FRAM user memory with Fujitsu MB89R118 chip
• Non-volatile memory retention with unlimited write cycles
• High-speed data read/write operations

Physical Construction:

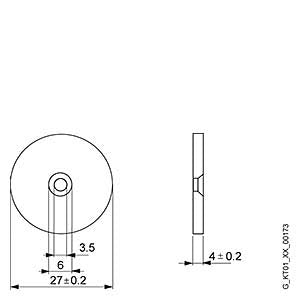

• Button-style: 27 mm diameter × 4 mm height, 5 grams
• Epoxy resin housing, black finish, IP67 protection
• Multiple mounting options: adhesive, threaded, embedded

RF Communication:

• 13.56 MHz frequency, ISO 15693 protocol compliance
• Maximum read range: 300 mm, transfer rate: 26.5 kbps
• Anti-collision support for multiple transponders

System Compatibility

Compatible Systems:

• SIMATIC RF200/RF300 RFID systems in ISO mode
• MOBY D identification systems
• ISO 15693 compliant third-party readers
• Communication modules: ASM 456/475, RF120C/160C/170C/180C/182C
• RFID 181EIP Ethernet interface and PC-based tools

Environmental Specifications

• Operating temperature: -25°C to +85°C (-13°F to +185°F)
• Storage temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 0-95% RH, vibration/shock resistant per IEC 68-2-6/27

Product Identifiers

• EAN: 4042948527115
• UPC: 662643523669
• Net weight: 0.010 kg
• Country of origin: Germany

Compliance Information

• RoHS directive compliance: Given
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead. Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Functionality

Data Storage Applications:

• Industrial identification, tracking, and work-in-progress monitoring
• Quality control data storage and process parameter retention
• Tool, fixture, and asset identification systems

Performance Features:

• ISO 15693 standard compliance for universal compatibility
• Robust construction for harsh industrial environments
• Fast data access with multi-transponder anti-collision capability
• SIMATIC FB 45 function block and TIA Portal integration

Applications

• Production line identification and tracking systems
• Container/pallet tracking in logistics operations
• Assembly line control and monitoring
• Asset identification and inventory management
• Manufacturing process control and warehouse automation
• Quality control and product genealogy tracking
• Tool management and work-in-progress monitoring

Alternative Options

When different specifications are required:

• MDS D324 (992 bytes) for lower memory requirements
• MDS D426 (2000 bytes) in disk form factor
• MDS D124 (112 bytes) for basic identification
• MDS D160 (112 bytes) for high-temperature applications
