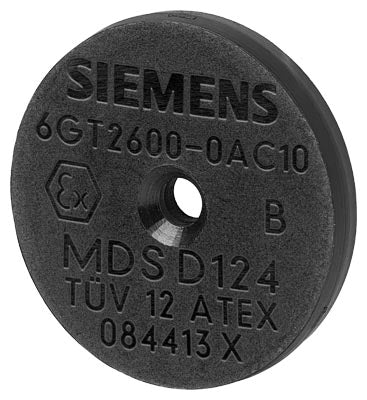

Siemens Transponder MDS D124 for RF200/RF300 ISO/MOBY Part number 6GT2600-0AC10

Product Overview

The Siemens 6GT2600-0AC10 is a transponder — type MDS D124 — designed for use with RF200 / RF300 and MOBY D RFID reader systems. It operates at 13.56 MHz using the ISO 15693 protocol, featuring a 112-byte EEPROM user memory. The transponder is rugged and heat-resistant, suitable for harsh industrial environments where reliable RFID identification is required (e.g. parts tracking, work-in-progress tagging, or harsh-environment tracking applications).

Key Features

• RFID transponder MDS D124 for RF200 / RF300 / MOBY D systems
• Operating frequency: 13.56 MHz — ISO 15693 protocol
• User memory: 112 bytes EEPROM (plus fixed UID and configuration area)
• Multitag capable — supports multiple tags in reader field
• Heat-resistant plastic housing — can operate under high temperatures
• Wide ambient temperature range: continuous operation up to 100 °C, short-term exposure up to 180 °C
• High protection class: IP68 / IPx9K — dust-tight and resistant to water jets / harsh environmental conditions
• Shock and vibration resistant — suitable for industrial-use mounting and handling
• Compact form factor: 27 mm diameter × 4 mm height — suitable for installation in tight spaces or on small items

Technical Specifications

• Article Number: 6GT2600-0AC10
• Product Type: RFID transponder (MDS D124)
• Operating Frequency: 13.56 MHz
• Protocol: ISO 15693
• User Memory: 112 bytes (EEPROM)
• Read/Write Cycles (typical): up to ~100 000 write cycles; read cycles very high (per datasheet specs)
• Data Retention (typical): ≥ 10 years under normal conditions
• Operating Range (reader dependent): up to ~300 mm (depending on reader and environment)
• Dimensions: Ø 27 mm × height 4 mm
• Protection Rating: IP68 / IPx9K
• Operating Temperature: –40 °C … +100 °C (continuous), up to +180 °C for limited time / cycles
• Resistance: Shock, vibration per industrial standards (suitable for harsh environments)
• Material / Housing: PPS (heat-resistant plastic), black color
• Mounting Tip: Maintain minimum 15 mm distance from metal surfaces when mounted (to ensure reliable RF performance)

Compliance & Standards

• RF communication per ISO 15693 standard — compatible with Siemens RF200 / RF300 / MOBY D reader systems
• Industrial-grade protection (IP68 / IPx9K), shock and vibration resilience — suitable for demanding manufacturing or outdoor environments
• Memory reliability: EEPROM with high write-cycle endurance and long data retention — suitable for long-term tracking / identification tasks

Applications

The 6GT2600-0AC10 transponder is ideal for RFID-based identification, tracking, or data storage in industrial and manufacturing settings. Typical applications include work-in-progress tracking, production part identification, traceability of components under harsh conditions (high temperature, dust, water), logistics tracking in warehouses, or integration into transport systems. Its rugged design and compact form factor make it suitable for installation on metal or plastic items, in tool-cribs, containers, assemblies — anywhere reliable RFID tagging is needed under industrial conditions.
