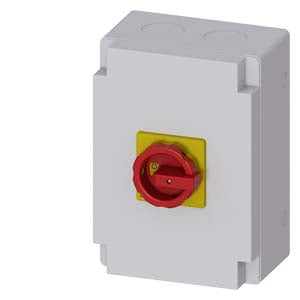

Siemens Switch disconnector, rotary operated, 3-pole, 400V
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
The SENTRON 3LD series emergency switching-off switch provides reliable emergency stop functionality for industrial applications requiring higher current capacity. This 3-pole switch disconnector is rated for 100 A with operating power of 37 kW at AC-23 A 400 V, making it suitable for demanding industrial installations where robust emergency switching is critical.
Key Specifications:
- Rated Current (Iu): 100 A
- Operating Power: 37 kW at AC-23 A 400 V
- Poles: 3-pole configuration
- Mounting: Motor operation compatible
- Operation: Rotary operating mechanism
- Safety Colors: Red/yellow for emergency identification
- Auxiliary Contacts: Integrated auxiliary contact configuration
Technical Details:
- Current Rating: 100 A continuous current
- Voltage Rating: 400 V AC
- Breaking Capacity: Suitable for AC-23 switching category
- Country of Origin: Germany
- Compliance: RoHS directive compliant
- Product Lifecycle: Active product
Applications: Ideal for emergency switching applications in high-power industrial installations, motor control centers, and electrical distribution systems where 100 A switching capacity is required. The robust construction makes it suitable for demanding environments with frequent switching operations.
Features:
- High current capacity for demanding applications
- Emergency stop functionality with distinctive safety coloring
- Robust construction suitable for industrial environments
- Motor operation compatibility for remote switching
- Integrated auxiliary contacts for control circuit applications
- Rotary operating mechanism for reliable switching performance
Standards & Compliance:
- Complies with relevant IEC standards for switch disconnectors
- RoHS directive compliant
- Suitable for emergency switching applications per safety standards

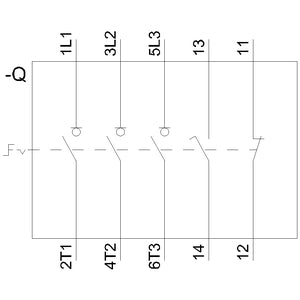

Download existing graphical data for this product:
- 2D CAD Drawing (DWG)
- 3D CAD Model (STEP)
- Product Datasheet (PDF)
- Dimensional Drawing (PDF)
- Wiring Diagram (PDF)
- Installation Manual (PDF)
- Terminal Connection Diagram (PDF)
Additional Information:
- Motor operation capability for automated switching
- Suitable for high-power industrial applications
- Emergency switching compliance for safety systems
- Single piece packaging
Additional Information
| IP Rating | IP65 |
| IP Rating Detailed | IP65 degree of protection NEMA rating 1, 4X, 12 protection class IP on the front IP65 Dissipation power loss |
| Compliance/Standards | UL 60947-4 |
| Part Width (mm) | 220,00mm |
| Part Height (mm) | 310,00mm |
| Part Depth (mm) | 193,00mm |
| Weight (g) | 1,829 Kg |
| Max Frequency | 501 /h |
| description | SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 100 A, operating power / at AC-23 A 400 V: 37 kW, Molded plastic encapsulation for metric cable gland, 1 NC, 1 NO, rotary operating mechanism, red/yellow |
| country_of_origin | Germany |
