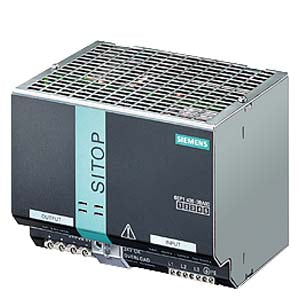

Siemens Sitop Stabilized power supply, 24VDC, 20A Part number 6EP1436-3BA00

Product Overview

The Siemens 6EP1436-3BA00 is a SITOP modular three-phase stabilized power supply designed to deliver reliable 24 V DC power in demanding industrial and automation environments. It supports a wide three-phase AC input range and provides a stable output of up to 20 A, ensuring dependable power distribution for control systems, PLCs, sensors, and machinery. Its rugged DIN-rail form factor, precise voltage regulation, and integrated protection functions make it a trusted choice for high-performance industrial installations.

Key Features

• SITOP modular 3-phase stabilized power supply for industrial DC applications
• Wide input voltage range for flexible integration into global three-phase systems
• 24 V DC output delivering up to 20 A (480 W)
• Excellent load regulation for stable DC supply
• Integrated short-circuit and overload protection
• DIN-rail mounting for fast, efficient installation
• High operational reliability even under fluctuating mains conditions
• Compact modular design suitable for space-restricted control cabinets

Technical Specifications

• Article Number: 6EP1436-3BA00
• Product Family: SITOP Modular
• Input Type: Three-phase AC
• Rated Input Voltage: 400 – 500 V AC
• Input Voltage Range: 320 – 550 V AC
• Frequency: 50/60 Hz
• Output Voltage: 24 V DC
• Output Current: 20 A
• Output Power: 480 W
• Mounting: DIN-rail (EN 60715)
• Protection: Short-circuit and overload protection
• Dimensions (approx): 160 × 125 × 125 mm
• Operating Temperature: 0 °C to +70 °C
• IP Rating: IP20

Compliance & Certifications

• Built in accordance with Siemens SITOP modular power supply standards
• Designed for worldwide three-phase 50/60 Hz systems
• Satisfies industrial requirements for stabilized, safety-protected DC power

Applications

The Siemens 6EP1436-3BA00 is ideal for supplying stable DC power to automation systems, PLCs, distributed I/O, sensors, actuators, and control cabinet equipment. Its wide input tolerance and high output capacity make it suitable for production lines, industrial machinery, process engineering systems, and environments where uninterrupted, regulated power is critical for operational continuity.
