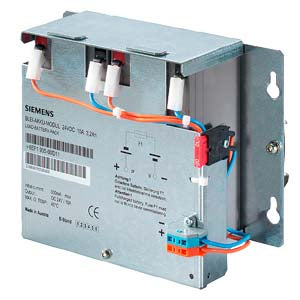

Siemens Sitop Rechargeable battery module, 24V/3.2Ah
View on Siemens 📄 Datasheet
Siemens

Siemens Sitop Rechargeable battery module, 24V/3.2Ah Part number 6EP1935-6MD11

EAN / Barcode 4025515150480
Product Type Control Panel
Product Class Rechargeable battery
ETIM Class Rechargeable battery
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

SITOP battery module 24 V/3.2 Ah with maintenance-free sealed lead-acid batteries for SITOP DC UPS module 6 A and 15 A The maintenance-free battery modules with lead-acid battery are an important part of the DC UPS systems. In combination with a 24 V power supply and a DC UPS module, you can buffer against power failures lasting up to several hours. For longer buffer times, up to six battery modules can be connected in parallel. The battery modules are completely prewired with battery retainer and terminals. These can be mounted onto a DIN rail or directly on the wall.

Technical Specifications

Ambient temperature50 °C
Battery packYes
Capacity3200 mAh
Height including pole151 mm
Length82 mm
Nominal voltage24 V
Number of cells12
Weight3200 g
Width190 mm
Part Width20 mm
Part Height23 mm
Part Depth15 mm
Weight3200 g
Country of OriginAustria
View complete specifications on Siemens
