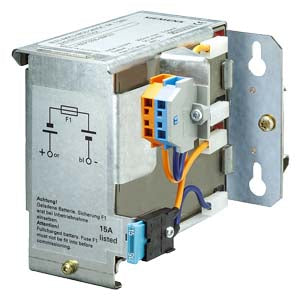

Siemens Sitop Rechargeable battery module 24V

Product Overview

The SIMATIC SITOP Battery Module 24V/1.2Ah delivers reliable backup power with maintenance-free sealed lead-acid battery technology for SITOP DC UPS systems rated at 6A. This active product provides essential power continuity protection during outages lasting up to several hours, featuring integrated battery management and LED status indication for optimal system monitoring. Enhanced with completely pre-wired design including battery fuse holders and connection terminals, supporting parallel connection of up to six modules for extended backup times in critical industrial applications.

Key Features

• Maintenance-Free Design: Sealed lead-acid battery technology requiring no routine maintenance
• 1.2Ah Capacity: Reliable energy storage for extended backup power during outages
• Integrated Battery Management: Built-in charging control and protection circuitry
• LED Status Indication: Visual battery status monitoring for maintenance diagnostics
• Pre-Wired Configuration: Complete with battery fuse holders and connection terminals
• Parallel Connection Capability: Up to six modules can be connected for extended backup times
• DIN Rail/Wall Mounting: Flexible installation options with supplied mounting bracket
• 7.5A Solid-State Fuse Protection: Integrated overcurrent protection for system safety

Technical Specifications

• Nominal Voltage: 24V DC | Battery Capacity: 1.2Ah sealed lead-acid
• Rated Current Performance: 10A (1min), 6A (3.5min), 4A (6.5min), 3A (9min), 2A (15min), 1A (34.5min) | Weight: 1.650 kg
• Dimensions: 96mm (W) × 106mm (H) × 108mm (D) | Net Width: 265mm
• Operating Temperature: -15°C to +50°C | Storage Temperature: -20°C to +50°C

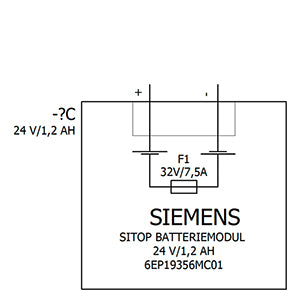

• Protection: 7.5A 32V solid-state fuse | Connection Type: Screw-clamp terminals
• Mounting: DIN rail (35×7.5 / 35×15) or wall mounting | Battery Type: Maintenance-free sealed lead-acid
• Number of Cells: 12 | Parallel Connection: Up to 6 modules maximum

Applications & Integration

Primary Applications:

• Industrial automation systems requiring uninterrupted 24V DC power supply
• Critical process control applications needing backup power during outages
• Manufacturing equipment requiring safe shutdown during power failures
• Data acquisition systems needing continuous power for measurement recording

System Compatibility:

• Compatible with SITOP DC UPS modules rated at 6A
• Integration with 24V DC power supply systems for comprehensive backup protection
• Suitable for use with industrial PCs requiring extended shutdown time
• Compatible with SIMATIC automation systems and distributed control networks

Performance Benefits:

• Bridges power failures for hours with single module, extended with parallel connection
• Enables safe and controlled shutdown of critical equipment during outages
• Maintains communication and data recording capabilities during power interruptions
• Supports high-performance industrial applications with higher energy demands

Quality & Compliance

• Status: PM300 Active Product (Product phase-out since: 01.10.2025) | Origin: Austria
• EAN: 4025515151258 | UPC: 662643298475
• RoHS Compliant: Yes | WEEE: Take-back obligation applies
• REACH: Contains lead above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: EAR99
• Certifications: CE marking, cURus-Recognized (UL 1778; CSA C22.2 No. 107.1)
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × SITOP Battery Module 24V/1.2Ah, wall mounting bracket, technical documentation, connection accessories
