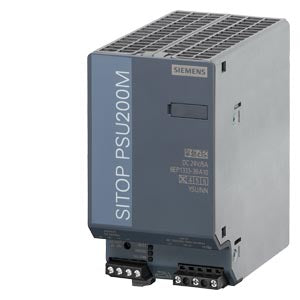

Siemens Sitop PSU200M 5 A Stabilized power supply, 5A

Product Overview

The SIMATIC SITOP PSU200M 5A Stabilized Power Supply delivers versatile single-phase and 2-phase AC to DC power conversion with ultra-wide input range 120/230-500V AC and regulated 24V DC/5A output for demanding industrial automation applications. This active product provides technology power supply capabilities for complex plants and machines, featuring Power Boost function delivering up to three times nominal current over short durations. Enhanced with ultra-wide-range input for maximum flexibility, switchable overload response modes, and robust construction for reliable operation in challenging industrial environments.

Key Features

• Ultra-Wide Input Range: 120/230-500V AC input for universal application compatibility
• 5A Output Capacity: Regulated 24V DC output with 5A continuous current capability
• Power Boost Function: Delivers up to three times nominal current (15A peak) over short durations
• Dual Input Configuration: Single-phase or 2-phase connection capability for maximum flexibility
• Switchable Overload Response: Choice between constant current with automatic restart or latching disconnection
• Technology Power Supply: Designed for demanding solutions in complex plants and machines
• DIN Rail Mounting: Modular design with standard industrial mounting configuration
• High Reliability: Withstands large voltage fluctuations for stable operation

Technical Specifications

• Input Voltage: 120/230-500V AC (single-phase or 2-phase) | Output Voltage: 24V DC stabilized
• Output Current: 5A continuous, 15A peak | Power Output: 120W
• Input Current: 2.2A (120V) / 1.2A (230V) | Weight: 0.600 kg
• Dimensions: 15.00 x 14.00 x 9.00 cm | Frequency: 50-60 Hz
• Mounting: DIN rail standard | Operating Temperature: Standard industrial range
• Protection Class: Industrial standard | Overload Options: Constant current with auto-restart or latching shutdown
• Connection Type: Screw terminals | Input Range: 85-132V / 170-264V AC
• Case Material: Modular housing | Efficiency: High efficiency design

Applications & Integration

Primary Applications:

• Complex industrial plants and machines requiring reliable 24V DC power
• Manufacturing automation systems with demanding power requirements
• Process control applications requiring high overload capability
• Industrial systems with large voltage fluctuations or unstable supply conditions

System Compatibility:

• Single-phase supply systems (120/230V AC input)
• 2-phase connection directly between phase conductors of 3-phase systems
• Compatible with SITOP add-on modules for enhanced functionality
• Suitable for integration with various industrial automation networks

Performance Benefits:

• Ultra-wide input range ensures high reliability even with large voltage fluctuations
• Power Boost function handles high inrush current applications without problems
• Flexible overload response modes accommodate different application requirements
• Modular design enables easy integration and maintenance

Quality & Compliance

• Status: PM300 Active Product | Origin: Austria
• EAN: 4025515152873 | UPC: 887621837242
• RoHS Compliant: Since 01.08.2006 | WEEE: Take-back obligation applies
• REACH: Contains lead compounds above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: Industrial automation standards compliance
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × SITOP PSU200M 5A Stabilized Power Supply, technical documentation, installation accessories
