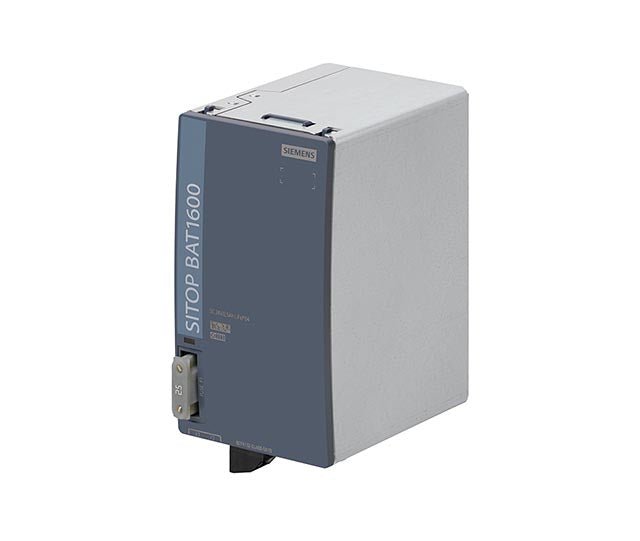

Siemens SITOP BAT1600 Battery module, LiFePO4, 24VDC, 2.5Ah Part number 6EP4132-0JA00-0AY0

Product Overview

The Siemens 6EP4132-0JA00-0AY0 is a SITOP BAT1600 battery module providing 24 V DC and 2.5 Ah capacity. Designed for integration with the SITOP UPS1600 DC UPS system, it supports reliable buffering of control- and automation-system loads during mains interruptions or outages.

Key Features

• 24 V DC lithium-iron phosphate (LiFePO4) battery module (2.5 Ah) for SITOP systems
• Designed for DIN-rail or wall mounting in control cabinets
• Screw-terminal connections for +BAT and –BAT terminals
• Compact module with integrated fuse protection for battery connection
• Supports buffering of industrial control and automation loads to avoid uncontrolled shutdowns

Technical Specifications

• Article Number: 6EP4132-0JA00-0AY0
• Product Family: SITOP BAT1600 battery modules
• Nominal Voltage: 24 V DC
• Battery Capacity: 2.5 Ah
• Maximum Output Current: 10 A
• Charging Current (Max): 3 A
• Protection Class: IP20
• Connection Terminals: Screw type: +BAT and –BAT (0.5 … 10 mm²)
• Typical Width: 89 mm
• Height: 156 mm
• Depth: 129 mm
• Operating Ambient Temperature: –10 °C to +50 °C

Compliance & Certifications

• Manufactured under Siemens SITOP quality standards for industrial power-supply and UPS systems
• Designed for use in automation and control cabinets with defined battery safety and power-back-up requirements

Applications

Used as a backup battery module in control systems to maintain 24 V DC supply during mains failures—thereby protecting PLCs, drive controls, communication modules, and automation systems. Common applications include manufacturing cells, process plants, machine tools, and distributed automation systems requiring reliable power continuity.
