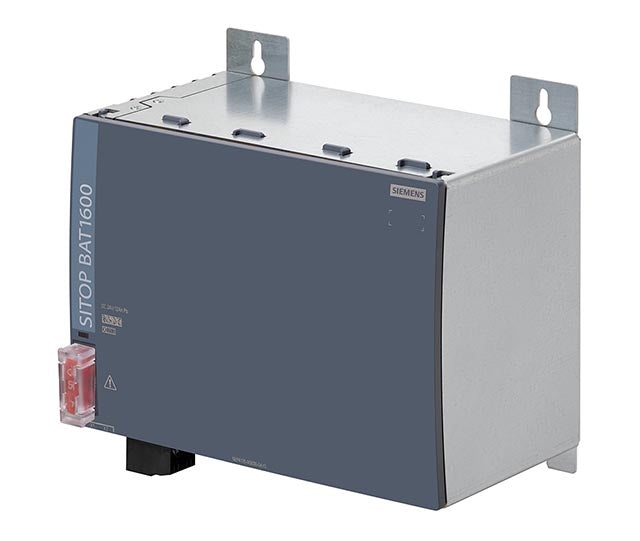

Siemens Sitop BAT1600 Battery module, lead acid, 24VDC, 12Ah Part number 6EP4135-0GE00-0AY0

Product Overview

The Siemens 6EP4135-0GE00-0AY0 is the Siemens SITOP BAT1600 24 V DC 12 Ah lead-acid battery module — a maintenance-free sealed battery unit designed to provide backup power for SITOP UPS1600 DC-UPS systems. It is used to ensure continuous 24 V DC supply for control systems, automation, and critical loads during mains voltage interruptions or disturbances.

Key Features

• 24 V DC, 12 Ah sealed lead-acid battery module for UPS backup
• Output current up to 40 A continuous in buffering mode
• Short-term peak current up to 120 A (e.g. for transient loads)
• Screw-terminal connections for battery and control wiring
• Includes 50 A/32 V maxi-fuse for safety and overload protection
• Three-colour status indicator (buffer ready / buffer endangered / no buffering possible)
• Wall-mountable housing — suitable for control cabinets and power panels
• Designed for industrial automation and control-system environments

Technical Specifications

• Article Number: 6EP4135-0GE00-0AY0
• Battery Type: Sealed lead-acid (Pb) battery, maintenance-free
• Nominal Output Voltage: 24 V DC
• Nominal Capacity: 12 Ah
• Continuous Output Current (buffered): 40 A
• Peak Current Capability: 120 A (short bursts)
• Maximum Charging Current: 3 A
• Connection Terminals: Screw-type (battery +/− and control terminals)
• Protection / Fuse: 50 A / 32 V maxi-fuse included for battery output
• Dimensions (Enclosure): ~ 225 mm × 156 mm × 138 mm
• Net Weight (approx.): 9.8 kg
• Mounting: Wall-mount (stand-alone installation, not DIN-rail)
• Operating Temperature Range: –15 °C … +50 °C
• Storage / Transport Temperature Range: –20 °C … +50 °C
• Battery Service Life (typical): ~ 4 years at 20 °C ambient (until ~80% capacity), less at higher temperatures
• Safety Class / Protection Class: Class III, IP20 enclosure

Compliance & Certifications

• Designed to be used with Siemens SITOP UPS1600 DC-UPS systems
• CE-marked and complies with relevant industrial battery and UPS safety standards
• Approved for marine and ship-building environments under appropriate regulations
• Suitable for industrial automation, control cabinets and critical load backup systems

Applications

The 6EP4135-0GE00-0AY0 battery module is used wherever reliable DC backup power is required: in control systems, PLC racks, automation panels, remote installations, and critical loads in factories, process plants or infrastructure. It ensures uninterrupted 24 V DC supply during mains failure or disturbances, enabling safe shutdown or continued operation of sensitive equipment, data-logging modules, communications, monitoring systems and safety circuits.
