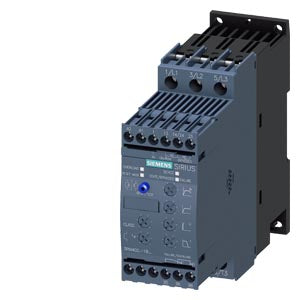

Siemens Sirius Soft starter, screw, S0, 11kW/ 400V, 25A

Product Overview

SIRIUS soft starter S0 25 A, 11 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals. This high-performance soft starter provides smooth motor acceleration and deceleration with higher control voltage capability, reducing mechanical stress and electrical surge currents for enhanced system reliability and energy efficiency in demanding industrial applications.

Technical Specifications

Article Number: 3RW4026-1BB14

Electrical Characteristics:

• Current rating: 25 A
• Power rating: 11 kW at 400 V
• Operating temperature: 40°C
• Supply voltage: 200-480 V AC
• Control voltage: 110-230 V AC/DC
• Terminal type: Screw terminals
• Size: S0

Motor Control Features:

• Soft start capability for smooth motor acceleration
• Overcurrent protection
• Thermal overload protection
• Reduced starting currents
• Mechanical stress reduction
• DIN rail mounting capability

Physical Properties:

• Net weight: 0.692 kg
• Packaging dimensions: 56.00 x 186.00 x 156.00 mm
• Packaging quantity: 1 piece
• Country of origin: Czech Republic

Product Identifiers:

• EAN: 4011209691667
• UPC: Not available

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes
• REACH Regulation: Contains lead, lead monoxide, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol in concentrations higher than 0.1% weight by weight. Based on current information, these substances do not pose risk when used as intended.

Classifications:

• eClass: 27-37-09-07
• ETIM: EC000640
• UNSPSC: 39-12-15-21
