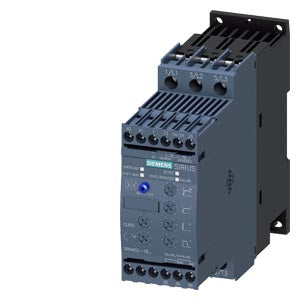

Siemens Sirius Soft starter S0, 24VAC/DC, 11kW, 25A Part number 3RW4026-1BB04

Product Overview

SIRIUS soft starter S0 25 A, 11 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals. This high-performance soft starter provides smooth motor acceleration and deceleration with higher current capacity, reducing mechanical stress and electrical surge currents for enhanced system reliability and energy efficiency in demanding industrial applications.

Technical Specifications

Article Number: 3RW4026-1BB04

Electrical Characteristics:

• Current rating: 25 A
• Power rating: 11 kW at 400 V
• Operating temperature: 40°C
• Supply voltage: 200-480 V AC
• Control voltage: 24 V AC/DC
• Terminal type: Screw terminals
• Size: S0

Motor Control Features:

• Soft start capability for smooth motor acceleration
• Overcurrent protection
• Thermal overload protection
• Reduced starting currents
• Mechanical stress reduction
• DIN rail mounting capability

Physical Properties:

• Net weight: 0.708 kg
• Packaging dimensions: 65.00 x 155.00 x 185.00 mm
• Packaging quantity: 1 piece
• Country of origin: Czech Republic

Product Identifiers:

• EAN: 4011209691643
• UPC: 754554958576

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes
• REACH Regulation: Contains lead, lead monoxide, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol in concentrations higher than 0.1% weight by weight. Based on current information, these substances do not pose risk when used as intended.

Classifications:

• eClass: 27-37-09-07
• ETIM: EC000640
• UNSPSC: 39-12-15-21

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• 3D CAD Models
• Product Details - Industry Mall
