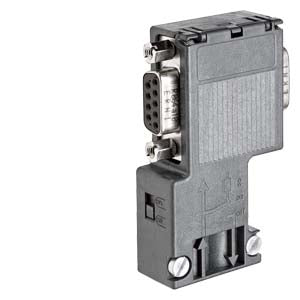

Siemens Siplus DP Profibus connector, M R + PG 90° cable

Product Overview

The SIPLUS DP PROFIBUS plug is a robust industrial connectivity solution designed for extreme environmental conditions. Based on the standard 6ES7972-0BB12-0XA0 with enhanced conformal coating protection, this connector provides reliable PROFIBUS communication up to 12 Mbps in challenging industrial environments with extended temperature ranges from -25°C to +70°C.

Key Features & Specifications

• Temperature Range: Extended operation from -25°C to +70°C with conformal coating protection
• Communication: PROFIBUS connectivity up to 12 Mbps data transmission rate
• Cable Configuration: 90° cable outlet for space-efficient installation
• Termination: Integrated terminating resistor with isolating function
• Programming Socket: Includes PG (Programming) socket for device programming and diagnostics
• Construction: Screwed joint locking mechanism for secure connections
• Protection: Conformal coating for enhanced resistance to harsh environments
• Base Model: Enhanced version of standard 6ES7972-0BB12-0XA0 connector

Applications & Features

Ideal for industrial automation applications requiring reliable PROFIBUS communication in extreme environmental conditions. Perfect for outdoor installations, harsh manufacturing environments, and applications with extended temperature requirements. Features robust construction with conformal coating protection, making it suitable for SIPLUS extreme accessory applications and demanding industrial connectivity needs.

Compliance & Certifications

• Weight: 0.061 kg, Packaging: 6.80 x 7.70 x 3.00 cm
• Standards: RoHS compliant (since Jan 2012), WEEE compliant
• Origin: Germany, EAN: 4025515144410, UPC: 662643395402
• Safety: Contains REACH substances (Lead) at <0.1% w/w - no risk when used as intended
