Siemens Sinamics V90, 50-point setpoint signal cable, 0.5m

Product Overview

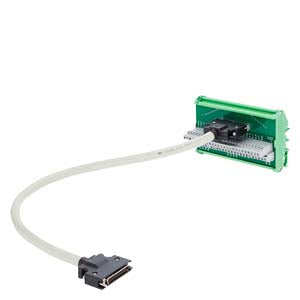

SINAMICS V90 50-point setpoint signal cable Cable length: 0.5 m with connecting terminal. This pre-assembled control/setpoint cable provides reliable signal transmission between controllers and SINAMICS V90 servo drives. The cable features a 50-pin connector for drive-side connection and a separate terminal block on the controller side for easy wiring and configuration.

Key Features

• Pre-Assembled Design: Ready-to-use cable with factory-terminated connectors
• 50-Point Configuration: 50-pin connector for comprehensive signal transmission
• Terminal Block Integration: Separate terminal block for easy controller-side connections
• Industrial Grade: Designed for reliable operation in industrial servo applications
• Compact Length: 0.5-meter cable length for space-efficient installations

Technical Specifications

• Article Number: 6SL3260-4NA00-1VA5
• Product Series: SINAMICS V90 Setpoint Signal Cable
• Cable Length: 0.5 meters
• Connector Type: 50-pin plug connector (drive side)
• Terminal Configuration: Terminal block (controller side)
• Cable Type: Multi-conductor control cable
• Net Weight: 0.480 kg
• EAN: 4042948674468

Connector Specifications

• Drive Side: 50-pin plug connector
• Controller Side: Terminal block with individual terminals
• Pin Configuration: 50 points for comprehensive signal transmission
• Connector Type: MDR (Mini Delta Ribbon) style connector
• Contact Rating: Suitable for control signal levels
• Connection Method: Plug-in connection to SINAMICS V90

Cable Characteristics

• Cable Length: 0.5 meters
• Conductor Count: 50 conductors
• Conductor Size: 0.08 mm² per conductor
• Cable Construction: Multi-conductor shielded cable
• Outer Diameter: Approximately 13.7 mm maximum
• Cable Type: Industrial control cable
• Insulation: Industrial-grade insulation materials

Applications

• Servo Drive Control: SINAMICS V90 servo drive setpoint signal transmission
• Industrial Automation: Manufacturing and process control systems
• Motion Control: Precision positioning and motion control applications
• Packaging Machines: High-speed packaging and processing equipment
• Assembly Lines: Automated assembly and manufacturing systems
• Robotics: Industrial robotics and automation applications

System Integration

• SINAMICS V90 Compatibility: Specifically designed for SINAMICS V90 servo drives
• Controller Interface: Terminal block for easy connection to various controllers
• Signal Transmission: Comprehensive setpoint and control signal transmission
• Plug-and-Play: Pre-assembled for immediate installation
• Industrial Standards: Meets industrial automation connectivity requirements

Installation Benefits

• Ready-to-Install: Pre-assembled cable eliminates field termination
• Time-Saving: Reduces installation time and potential wiring errors
• Reliable Connection: Factory-tested connections ensure signal integrity
• Easy Maintenance: Standard connectors for easy replacement
• Professional Grade: Industrial-quality construction for long-term reliability

Signal Capabilities

• Setpoint Signals: Analog and digital setpoint signal transmission
• Control Signals: Drive enable, direction, and control command signals
• Feedback Signals: Position and status feedback signal transmission
• Safety Signals: Safety-related signal transmission capability
• Communication: Serial communication interface signals

Mechanical Specifications

• Cable Flexibility: Flexible design for routing in control cabinets
• Bend Radius: Optimized bend radius for cabinet installation
• Strain Relief: Integrated strain relief at connector points
• Environmental Rating: Industrial environment suitable
• Temperature Range: Standard industrial temperature range

Quality & Compliance

• Country of Origin: China
• RoHS Compliance: Since 31.12.2006
• Export Control: AL : N / ECCN : N
• Product Class: A (Standard stock item)
• WEEE Compliance: No take-back obligation
• REACH Compliance: No SVHC substances above 0.1% w/w threshold

Packaging Information

• Packaging Dimensions: 133 x 230 x 85 mm
• Quantity Unit: 1 piece
• Packaging Quantity: 1 unit
• Net Weight: 0.480 kg
• Industrial Packaging: Protected packaging for safe transport

Installation Requirements

• SINAMICS V90 Drive: Compatible with all SINAMICS V90 servo drives
• Controller Interface: Terminal block connections for various controllers
• Wiring: Standard industrial wiring practices
• Cable Routing: Proper cable routing and strain relief
• EMC Considerations: Proper grounding and EMC practices

Performance Characteristics

• Signal Integrity: Excellent signal transmission characteristics
• Noise Immunity: Shielded design for electromagnetic interference protection
• Reliability: High-reliability connectors and cable construction
• Durability: Industrial-grade materials for long service life
• Flexibility: Suitable for various installation configurations

Related Products

• SINAMICS V90 Drives: Compatible servo drives
• I/O Cables: Additional I/O connection cables
• Connectors: Replacement connectors and terminals
• Accessories: Additional V90 accessories and components
• Mounting Hardware: Cabinet mounting and routing accessories

Technical Support

• Installation Support: Technical support for installation
• Wiring Diagrams: Comprehensive wiring documentation
• Application Support: Application-specific technical support
• Training: Available training on proper installation and use
• Documentation: Complete technical documentation available

Advantages

• Cost-Effective: Economical solution for servo drive connectivity
• Reliable Performance: Proven reliability in industrial applications
• Easy Installation: Pre-assembled design simplifies installation
• Flexible Configuration: Terminal block allows flexible wiring
• Industrial Quality: Built for demanding industrial environments

Environmental Specifications

• Operating Temperature: Industrial standard temperature range
• Humidity: Industrial humidity tolerance
• Vibration: Suitable for industrial vibration environments
• Chemical Resistance: Resistant to industrial chemicals
• UV Resistance: Suitable for indoor industrial applications
