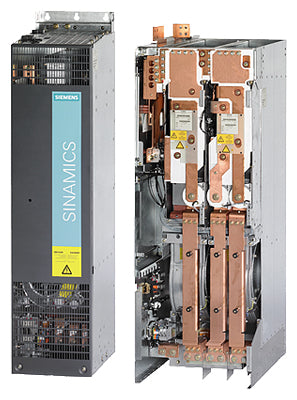

Siemens Sinamics S120 Single motor module, 3-phase, 600V, 380A, 200kW Part number 6SL3320-1TE33-8AA3

Product Overview

The Siemens 6SL3320-1TE33-8AA3 is a SINAMICS S120 Single Motor Module designed for high-performance industrial drive applications. It features a 600 V DC-link input and delivers a three-phase 400 V output rated at 380 A. The module is engineered for chassis installation with internal air cooling and supports extended safety functions for demanding automation and motion-control systems.

Key Features

• High-performance single motor module for SINAMICS S120 drive systems
• DC-link input: 600 V DC
• Output voltage: 400 V AC, three-phase
• Rated output current: 380 A
• Integrated extended safety functions (Safety Integrated SIL 2 / PL d)
• Internal air cooling for efficient heat management
• Compact chassis design for installation in drive cabinets
• Drive-CLiQ interface compatibility for seamless system integration
• Robust construction suitable for industrial environments

Technical Specifications

• Product Series: SINAMICS S120
• Article Number: 6SL3320-1TE33-8AA3
• Input Voltage (DC-Link): 600 V DC
• Output Voltage: 400 V AC (three-phase)
• Rated Output Current: 380 A
• Cooling Type: Internal air cooling
• Frame Design: Chassis-mount module
• Safety Category: SIL 2 / PL d (Safety Integrated)
• Protection Class: IP20
• Ambient Operating Temperature: –10 °C to +40 °C (with derating above +40 °C)
• Mounting Orientation: Vertical installation in control cabinet
• Communication Interface: Drive-CLiQ

Compliance & Certifications

• Manufactured by Siemens under the SINAMICS S120 drive system standards
• Complies with IEC/EN standards for variable-speed drives and functional safety
• Tested for industrial-grade performance, safety, and reliability

Applications

Ideal for use in high-power industrial applications such as machine tools, production lines, conveyors, and automation systems requiring precise motor control and energy-efficient drive performance. The SINAMICS S120 module ensures flexible integration, high output capability, and superior reliability for complex motion-control tasks.
