Product Overview

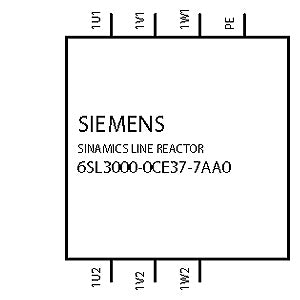

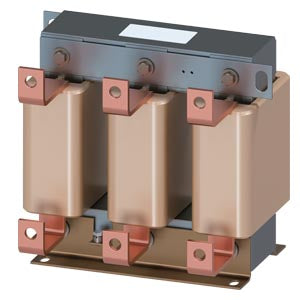

SINAMICS line reactor Input: 380-480V 3AC, 50/60 Hz 773 A for use with SINAMICS S120 converter system. Essential component for reducing low-frequency line harmonic distortions and protecting semiconductor components in drive systems. Article Number: 6SL3000-0CE37-7AA0.

Key Specifications

Electrical Ratings:

• Input voltage: 380-480V 3AC
• Frequency: 50/60 Hz
• Current rating: 773 A
• Three-phase configuration
• Suitable for grounded TN/TT and ungrounded IT systems

System Compatibility:

• Compatible with SINAMICS S120 converter system
• Designed for use with Power Modules in blocksize format
• Essential for proper Smart Line Module operation
• Prevents malfunction and device destruction when used correctly

Construction Features:

• Electrical reactor design for harmonic reduction
• Integrated precharging resistor support
• Robust construction for industrial applications
• Designed to offload semiconductor components

Performance Functions:

• Reduces low-frequency line harmonic distortions
• Protects Power Module semiconductors
• Ensures proper DC link precharging
• Maintains system stability and reliability

Physical Specifications

• Net weight: 47.0 kg
• Designed for industrial cabinet mounting
• Robust construction for demanding environments
• Made to order / customer specifications

Product Identifiers

• UPC: 662643531541
• Country of origin: Czech Republic
• NMA: A5E00125732

Compliance Information

• RoHS compliant
• WEEE (2012/19/EU) Take-Back Obligation: No

REACH Regulation Information

There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Important Notes

• Use of line reactors that are not part of the system can result in malfunctions and destruction of devices
• Appropriate line reactor is required for Smart Line Module operation
• Status indication available on multicolored LEDs when integrated with system
• Essential component for proper SINAMICS S120 system operation

Download existing graphical data for this product:

• Product Datasheet
• CAD Drawings & Technical Documentation
• Certificates
