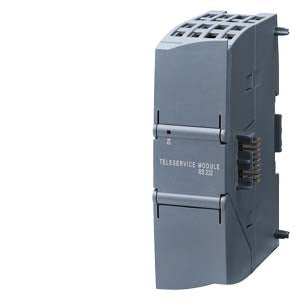

Siemens Simatic S7 TS module for simatic teleservice

Product Overview

SIMATIC S7, TS module RS-232 for SIMATIC Teleservice, connection to CP 1243-8 IRC. power supply via adapter. This teleservice module enables remote access and diagnostic capabilities for SIMATIC S7 automation systems through RS-232 serial communication interface, providing reliable remote maintenance and troubleshooting functionality for industrial applications.

Key Features

Communication Interface:

• RS-232 serial communication interface
• SIMATIC Teleservice functionality for remote access
• Connection to CP 1243-8 IRC communication processor
• Power supply via external adapter
• Spare part status for legacy system support

Module Design:

• Compact module design for space-efficient installation
• Industrial-grade construction for reliable operation
• German engineering and manufacturing quality
• Integration with SIMATIC S7 automation systems
• Remote diagnostic and maintenance capabilities

Performance Specifications:

• Interface Type: RS-232 serial communication
• Communication Protocol: SIMATIC Teleservice
• Power Supply: External adapter (not included)
• Connection: CP 1243-8 IRC communication processor
• Mounting: Standard industrial mounting

Technical Specifications

Physical Characteristics:

• Net Weight: 0.151 kg
• Packaging Dimensions: 8.80 x 10.40 x 5.60 cm
• Package Size Unit: CM
• Packaging: 1 piece per package

Electrical Properties:

• Interface: RS-232 serial communication
• Power Supply: Via external adapter
• Voltage Requirements: As specified by connected adapter
• Operating Environment: Industrial automation environments
• Connection Method: Direct connection to CP 1243-8 IRC

Standards and Compliance:

• RoHS Compliance: Yes, since 16.12.2010
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: ECCN: N / AL: N
• Country of Origin: Germany
• Product Status: Cancelled product (spare part only)

Product Information:

• EAN: 4025515079446
• UPC: 040892698046
• Packaging: 1 piece per package
• Product Class: Standard product (returnable)
• Cancellation Date: Product cancelled since 11.04.2024

Applications

The SIMATIC Teleservice module is designed for remote access and diagnostic applications in SIMATIC S7 automation systems requiring RS-232 serial communication. Ideal for remote maintenance, system diagnostics, troubleshooting, parameter monitoring, and system configuration in industrial automation environments where on-site access is limited or impractical.

Operation

The TS module provides RS-232 serial communication interface for SIMATIC Teleservice functionality, enabling remote access to SIMATIC S7 controllers and systems. The module connects directly to the CP 1243-8 IRC communication processor and requires external power supply via adapter. Remote technicians can access the automation system for diagnostics, parameter changes, program uploads/downloads, and system monitoring. The module supports standard RS-232 communication protocols and provides reliable data transmission for remote maintenance operations.

Compatibility

System Integration:

• SIMATIC S7: Compatible with SIMATIC S7 automation systems
• CP 1243-8 IRC: Direct connection to communication processor
• SIMATIC Teleservice: Full teleservice functionality support
• Remote Access: Standard teleservice communication protocols

Communication Features:

• Protocol: RS-232 serial communication
• Interface: Standard RS-232 connector
• Data Transmission: Reliable serial data communication
• Remote Access: SIMATIC Teleservice capabilities

Important Notice

This product has been cancelled since April 11, 2024, and is available as a spare part only. For new installations, please contact your local Siemens office for current product alternatives and system solutions.

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing lead in concentrations higher than 0.1% weight by weight (w/w). Based on current information, these substances do not pose risk when used as intended, including proper disposal.

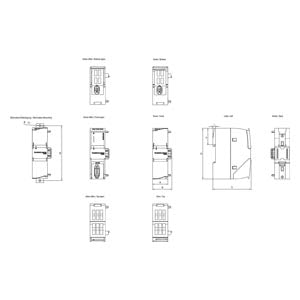

Download existing graphical data for this product:
