Product Overview

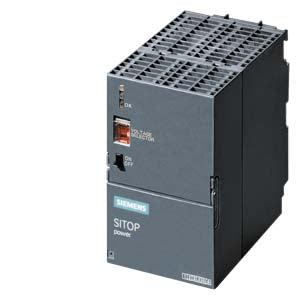

The SIMATIC S7-300 Outdoor Regulated Power Supply PS307 is a ruggedized industrial power supply specifically designed for harsh outdoor environments. This outdoor-rated unit delivers stable 24V DC output at 5A from dual input voltages of 120/230V AC, making it ideal for powering S7-300 and ET 200M systems in challenging outdoor applications.

Key Features

• Outdoor-Rated Design: Specially engineered for outdoor installations and harsh environmental conditions
• Dual Input Voltage: Accepts both 120V AC and 230V AC input for flexible installation worldwide
• Regulated Output: Provides stable 24V DC at 5A with excellent regulation and low ripple
• Ruggedized Construction: Enhanced protection against environmental factors including temperature extremes and moisture
• Compact Profile: Space-efficient design optimized for outdoor enclosures
• Industrial Grade: Built to withstand demanding outdoor industrial environments
• Overload Protection: Integrated protection circuits ensure safe operation under all conditions

Technical Specifications

• Input Voltage: 120/230V AC (Auto-ranging)
• Input Frequency: 47-63 Hz
• Output Voltage: 24V DC (regulated)
• Output Current: 5A
• Power Output: 120W
• Net Weight: 0.57 kg
• Dimensions: 125 mm H × 80 mm W × 120 mm D
• Built-in Dimensions: 205 mm H × 80 mm W × 120 mm D
• Mounting: DIN rail compatible with outdoor enclosures
• Protection Rating: IP20 (when properly enclosed)
• Efficiency: 90% typical
• Operating Temperature: Extended range for outdoor use

Outdoor Applications

This outdoor power supply is specifically designed for:

• Remote SIMATIC S7-300 installations in outdoor environments
• ET 200M distributed I/O systems in harsh conditions
• Industrial automation systems exposed to weather elements
• Process control equipment in outdoor facilities
• Remote monitoring and control systems
• Utility and infrastructure applications
• Mobile and temporary installations

Environmental Specifications

• Outdoor Rating: Designed for installation in suitable outdoor enclosures
• Temperature Range: Extended operating temperature range for outdoor conditions
• Humidity Resistance: Enhanced protection against moisture and condensation
• Vibration Resistance: Robust construction to handle outdoor environmental stresses
• Corrosion Protection: Materials selected for outdoor durability

Quality & Compliance

• Country of Origin: Romania
• EAN: 4025515150336
• UPC: 662643209358
• WEEE Compliant: Take-back obligation applies
• Product Class: Standard product with return guidelines compliance

Important Notice

Product Lifecycle Status: This product is in phase-out status (PM400) effective from 01.10.2023. Please consider this for long-term projects and plan accordingly for future requirements.

REACH Compliance: This product contains lead and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one in concentrations above 0.1% w/w. When used as intended, these substances pose no risk during normal operation and disposal.

Installation Requirements

• Must be installed in appropriate outdoor-rated enclosure
• Proper cable glands and sealing required for outdoor installation
• Adequate ventilation within enclosure to prevent overheating
• Protection from direct water ingress and extreme weather conditions
• Compliance with local electrical codes for outdoor installations

Package Contents

• 1 × SIMATIC S7-300 Outdoor Power Supply PS307
• Technical documentation
• Mounting hardware
