Product Overview

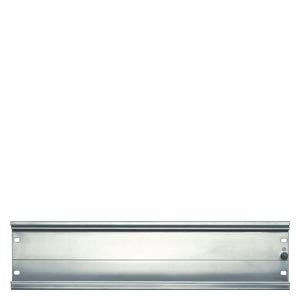

SIMATIC S7-300 Mounting Rail, Length: 830 mm

This precision-engineered mounting rail is designed specifically for SIMATIC S7-300 automation systems, providing a stable and secure foundation for control modules and components. The 830mm length offers optimal flexibility for medium to large-scale installations, accommodating multiple modules while maintaining system integrity and proper grounding connections.

Key Features

• Length: 830 mm for extended module configurations
• Material: High-quality aluminum construction for durability and lightweight design
• Surface Protection: Galvanic/electrolytic zinc plated finish for corrosion resistance
• Profile: Special profile design optimized for S7-300 system mounting
• Installation: Direct cabinet mounting or can be cut to custom lengths
• Grounding: Designed for proper grounding connection with appropriate terminals
• Compatibility: Engineered specifically for SIMATIC S7-300 system components

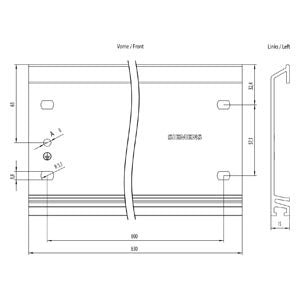

Technical Specifications

• Article Number: 6ES7390-1AJ30-0AA0
• Length: 830 mm
• Height: 122 mm
• Material Thickness: 2.5 mm
• Material: Aluminum with zinc plating
• Surface Finishing: Galvanic/electrolytic zinc plated
• Drill Hole Distance (Centrically): 800 mm
• Punch Shape: UN profile
• Net Weight: 1.100 kg
• Packaging Dimensions: 13.00 x 83.00 x 2.00 cm
• Country of Origin: Germany
• EAN: 4025515061908
• UPC: 662643174571

Compliance & Certifications

• RoHS Compliance: Compliant since 01.01.2006
• Export Control: AL: N / ECCN: N
• Product Lifecycle: PM400 - Announcement of product phase-out (since 01.10.2023)
• WEEE Directive: No take-back obligation
• Product Class: Standard product with return capability within guidelines

Environmental & Safety Information

• Currently no information available on SVHC (Substances of Very High Concern) from the supply chain
• Product regularly screened for substances in accordance with REACH regulation requirements
• Information will be updated as new findings become available

Applications

• Primary mounting solution for SIMATIC S7-300 CPU modules
• Support structure for I/O modules and expansion units
• Control cabinet installations requiring reliable module mounting
• Industrial automation systems with multiple component configurations
• Process control installations needing secure module placement
• System upgrades and expansions of existing S7-300 installations

Installation Benefits

• Versatile Length: 830mm provides ample space for comprehensive module configurations
• Secure Mounting: Precision-engineered profile ensures stable module placement
• Corrosion Resistance: Zinc plating protects against environmental factors
• Easy Installation: Direct cabinet mounting with standard hardware
• Customizable: Can be cut to specific lengths for tailored installations
• Proper Grounding: Designed to accommodate grounding terminals for system safety

Compatible Systems

• Primary Compatibility: SIMATIC S7-300 automation system
• Module Support: All standard S7-300 CPU, I/O, and communication modules
• Cabinet Integration: Standard 19" rack and custom control cabinet installations
• Grounding Systems: Compatible with standard grounding terminals and accessories
