Siemens Simatic S7-300 Analog output, isolated, 20-pole - Rubicon Partner Portal
📄 Datasheet
Siemens

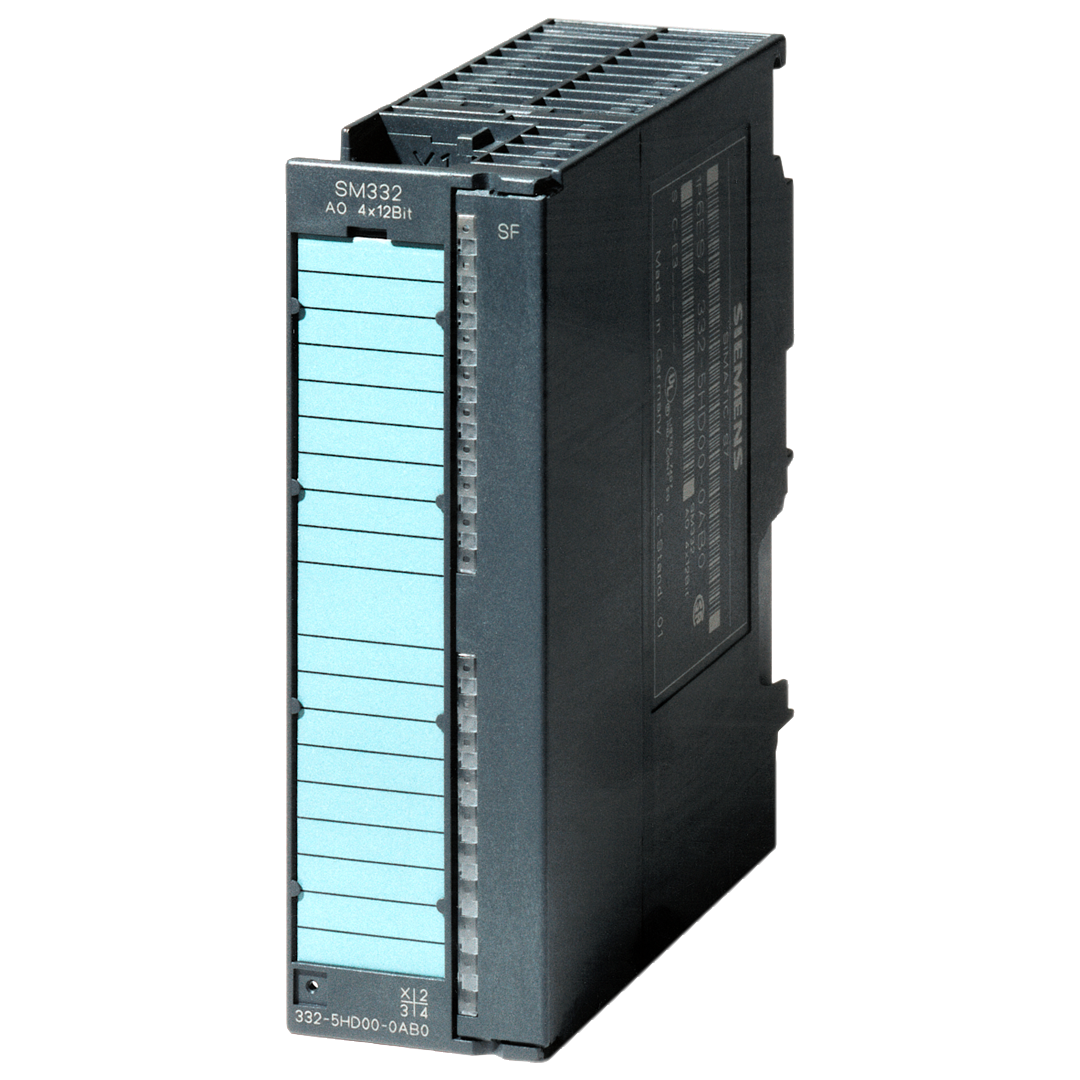

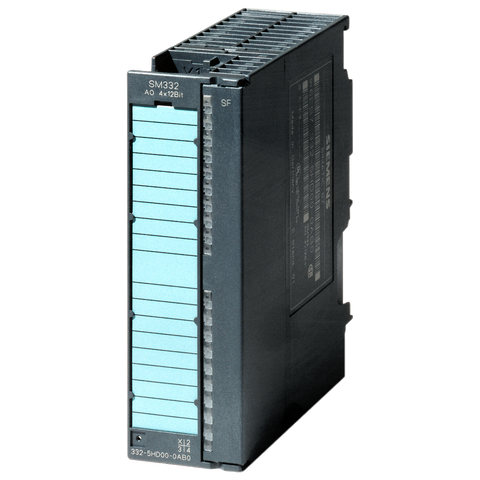

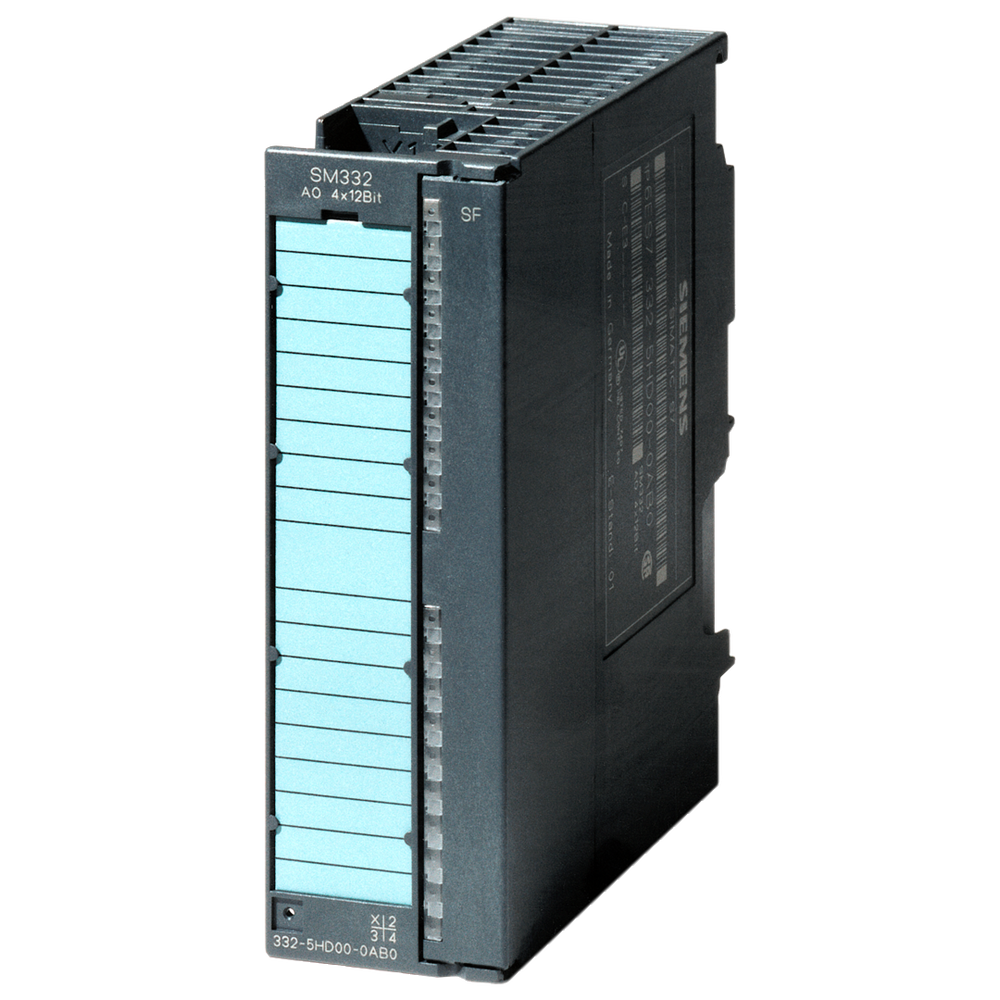

Siemens Simatic S7-300 Analog output, isolated, 20-pole Part number 6ES7332-5HD01-0AB0

EAN / Barcode 4025515061298
Product Type Control Panel
Product Class PLC analogue I/O-module
ETIM Class PLC analogue I/O-module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

4 Analogue output modules can be used to output analog signals from the PLC to the process. They are suitable for connecting analog actuators. The analog output modules convert numerical values from the controller into analog signals (current or voltage) for the process.

The ranges are set independently for each channel by means of the parameterization software.

Technical Specifications

Analogue outputs configurableYes
Depth117 mm
Height125 mm
Number of analogue outputs4
Output signal configurableYes
Output, currentYes
Output, voltageYes
Resolution of the analogue outputs12 Bit
Width40 mm
Part Width12 mm
Part Height15 mm
Part Depth5 mm
Weight252 g
Country of OriginGermany
