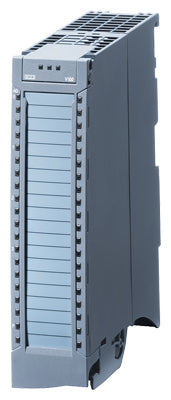

Siemens Simatic S7-1500 ET 200 Analogue output module, 8 channels Part number 6AG1532-5HF00-7AB0

Product Overview

The Siemens 6AG1532-5HF00-7AB0 is a SIPLUS S7-1500 AQ 8xU/I HS analog output module with conformal coating and extended temperature range, designed for use in harsh or extreme environments. It is based on the standard 6ES7532-5HF00-0AB0 module but enhanced for rugged industrial conditions, supporting eight analog output channels and offering high resolution and precision in demanding automation systems.

Key Features

• Analog output module with 8 output channels in groups of 8
• High-resolution 16-bit output signals for precise control
• Accuracy up to 0.4 % for analog outputs
• Diagnostic functions including substitute values in case of channel failures
• Designed for extreme environment use: conformal coating, temperature range from –40 °C to +70 °C (startup from –25 °C)
• Integrated shielding bracket and shield terminal for high EMC protection

Technical Specifications

• Product Series: SIPLUS S7-1500 AQ 8xU/I HS
• Article Number: 6AG1532-5HF00-7AB0
• Analog Outputs: 8 channels (grouped 8) supporting current and voltage signals
• Resolution: 16-bit
• Accuracy: up to 0.4 % for output values
• Ambient Operating Temperature: –40 °C to +70 °C (startup from –25 °C)
• Supply Voltage: 24 V DC (typical for S7-1500 I/O modules)
• Protection / Coating: Conformal coating for harsh environmental resistance
• Weight: approx. 0.200 kg

Compliance & Certifications

• Designed and manufactured by Siemens for industrial automation systems
• Conforms to SIPLUS requirements for extreme-condition modules (temperature, vibration, EMI)
• RoHS compliant and suitable for rugged field or panel installations in harsh environments

Applications

Ideal for distributed automation systems operating in demanding conditions — such as outdoor installations, extreme-climate factories, marine environments or other industrial settings where high-precision analog outputs and environmental robustness are required. Suitable for use with the S7-1500 controller family and ET 200 distributed I/O systems in heavy-duty manufacturing, process, and infrastructure applications.
