Product Overview

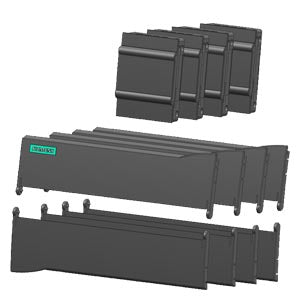

The SIMATIC S7-1200 Front Flap Spare Part Kit for CPU 1215C is a comprehensive protective cover set specifically designed for the SIMATIC S7-1200 CPU 1215C controller. This essential spare part kit includes all necessary front flap components to ensure proper protection and professional appearance of your CPU 1215C installation.

Key Features

• Complete Protection Set: Includes front flap top, front flap bottom, and signal board cover
• CPU 1215C Specific: Precisely designed for CPU 1215C controller models
• Professional Appearance: Maintains clean, industrial-grade aesthetics
• Easy Installation: Simple snap-on design for quick replacement
• Durable Construction: High-quality materials for long-term protection
• Multi-Component Kit: 4 units included for complete coverage
• Signal Board Protection: Dedicated cover for signal board connections

Technical Specifications

• Compatibility: SIMATIC S7-1200 CPU 1215C
• Package Contents: 4 units per package
• Components Included:
  • CPU 1215C front flap top
  • CPU 1215C front flap bottom
  • Signal board cover
  • Additional unit for backup
• Net Weight: 0.169 kg
• Package Dimensions: 11.30 × 14.40 × 8.60 cm
• Material: Industrial-grade plastic housing material
• Color: Standard SIMATIC color scheme

Applications

This front flap kit is essential for:

• CPU 1215C Maintenance: Replacement of damaged or worn front flaps
• System Protection: Safeguarding internal components from dust and debris
• Professional Installation: Maintaining industrial-grade appearance
• Safety Compliance: Meeting industrial safety and protection standards
• Preventive Maintenance: Ensuring long-term system reliability

Installation Benefits

• Dust Protection: Prevents contamination of internal components
• Connection Safety: Protects signal board connections from accidental contact
• Visual Identification: Clear labeling and professional appearance
• Maintenance Access: Easy removal for service and troubleshooting
• Industrial Standards: Meets IP20 protection requirements when properly installed

Compatibility Details

Compatible with CPU 1215C Models:

• All SIMATIC S7-1200 CPU 1215C variants
• DC/DC/DC power configurations
• AC/DC/RLY power configurations
• Standard and compact CPU versions

Not Compatible with:

• CPU 1211/1212 models (use 6ES7291-1AA30-0XA0)
• CPU 1214 models (use 6ES7291-1AB30-0XA0)
• CPU 1217 models (use 6ES7291-1AD30-0XA0)

Quality & Compliance

• Country of Origin: China
• EAN: 6940408101067
• UPC: 887621000240
• RoHS Compliant: Yes
• Product Class: Standard product with return guidelines compliance
• WEEE Obligation: No take-back obligation required

Important Notice

REACH Compliance: This product contains lead in concentrations above 0.1% w/w. When used as intended, this substance poses no risk during normal operation and disposal. Please refer to product documentation for additional information.

Maintenance & Replacement

• Replacement Frequency: As needed based on wear or damage
• Installation Time: Quick snap-on installation without tools
• Maintenance Access: Flaps can be easily removed for service access
• Spare Parts: Keep additional units for preventive maintenance
• Inspection: Regular visual inspection recommended

Package Contents

• 4 × Front flap components for CPU 1215C
  • Front flap top
  • Front flap bottom
  • Signal board cover
  • Additional backup unit
• Installation instructions (if applicable)

System Integration

This spare part kit integrates seamlessly with:

• SIMATIC S7-1200 CPU 1215C controllers
• SIMATIC S7-1200 system accessories
• Industrial automation environments
• Control panel installations
• DIN rail mounting systems
