Siemens Simatic S7-1200 Digital output, 16 DO, 24VDC, 0.5A Part number 6ES7222-1BH32-1XB0

Name: Siemens Simatic S7-1200 Digital output, 16 DO, 24VDC, 0.5A
Brand: Siemens
SKU: 6ES7222-1BH32-1XB0

EAN / Barcode 4034106033408

Product Type Control Panel

Product Class PLC digital I/O-module

ETIM Class PLC digital I/O-module

Back Order

💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

The SIMATIC S7-1200 Digital Output Module SM 1222 provides high-density NPN transistor switching with 16 digital outputs. Featuring 24V DC sourcing/sinking output configuration and 0.5A NPN transistor switching capacity, this module delivers specialized digital control for industrial automation applications requiring high-density NPN output switching with sinking capability.

Key Features

16 NPN Transistor Outputs: High-density NPN transistor switching with 0.5A capacity per channel
Sourcing/Sinking Output Configuration: Flexible output wiring supporting both sourcing and sinking applications
NPN Transistor Technology: Optimized for sinking output applications and NPN sensor interfacing
High-Density Design: 70mm width with 16 output channels for maximum I/O density
Fast Switching Performance: 0.05ms response time for rapid digital signal processing
Comprehensive Diagnostics: Individual channel status indication with overload and short-circuit detection

Technical Specifications

Output Configuration: 16 Digital Outputs (NPN Transistor)
Dimensions: 70 × 100 × 75 mm (W × H × D) | Weight: 0.199 kg
Output Type: 24V DC NPN transistor (sourcing/sinking) | Output Current: 0.5A per channel
Supply Voltage: 24V DC (20.4-28.8V range) | Output Voltage: 24V DC
Operating Temperature: -20°C to +60°C | Protection: IP20
Connection: Screw/spring clamp terminals | Response Time: 0.05ms signal delay

Applications & Integration

Primary Applications:

Manufacturing automation requiring high-density NPN output switching
Systems with NPN sensors and actuators requiring sinking output configuration
LED indicator control and low-power actuator switching applications

System Compatibility:

All S7-1200 CPU models except CPU 1211C (requires signal modules)
TIA Portal configuration with STEP 7 Basic programming environment
Up to 8 modules per CPU with hot-swappable installation
Standard 35mm DIN rail mounting with integrated connections

Quality & Compliance

Status: Active Product (PM300) | Origin: China
EAN: 4034106033408 | UPC: 195125068681
RoHS Compliant: Since 13.09.2019 | WEEE: Take-back obligation applies
REACH: Contains lead, lead oxide, silicic acid lead salt, and BPA above 0.1% w/w (safe when used as intended)

Package Contents

1 × SM 1222 Module (16 DO NPN Transistor), technical documentation, DIN rail hardware

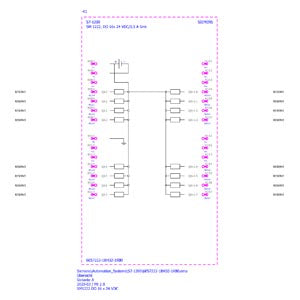

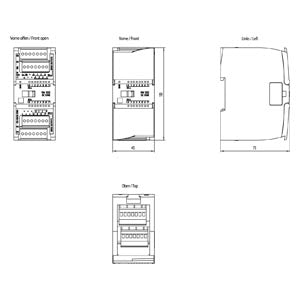

Download existing graphical data for this product:

Technical Specifications

Compliance/Standards	IEC 60068-2
country_of_origin	China
Depth	75 mm
description	SIMATIC S7-1200, Digital output SM 1222, 16 DO, 24 V DC, sourcing (Sinking Output), NPN transistor 0.5 A
Digital outputs configurable	Yes
Height	100 mm
IP Rating	IP20
IP Rating Detailed	IP20 Standards, approvals, certificates CE mark Yes CSA approval Yes UL approval Yes cULus Yes FM approval Yes RCM (formerly C
Number of digital outputs	16
Output current	0.5 A
Part Depth (mm)	5,70mm
Part Height (mm)	11,00mm
Part Width (mm)	8,80mm
Permitted voltage at output	28.8 V
Supply voltage DC	28.8 V
Time delay at signal change	0.35 ms
Type of digital output	Transistor
Type of output voltage	DC
Voltage type (supply voltage)	DC
Weight (g)	0,199 Kg
Width	45 mm
