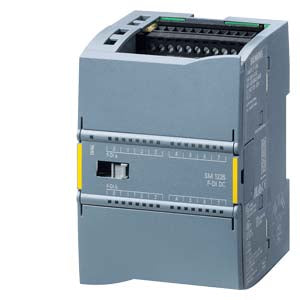

Siemens Simatic S7-1200, Digital input, 16 x 24VDC Part number 6ES7226-6BA32-0XB0

Product Overview

The Siemens SIMATIC S7-1200 digital I/O module, article number 6ES7226-6BA32-0XB0, is a combined digital input and digital output expansion module designed for SIMATIC S7-1200 controllers. It provides integrated digital inputs and digital outputs in a compact housing, allowing the S7-1200 system to connect sensors and actuators directly and efficiently for automation tasks in control panels and machinery.

Key Features

• SIMATIC S7-1200 digital input and output expansion module
• Integrated digital input and digital output channels
• Compact plug-in design for S7-1200 PLCs
• Direct connection of field devices
• Status LEDs for channel diagnostics
• Designed for industrial automation systems
• Reliable signal processing for control applications

Technical Specifications

• Article Number: 6ES7226-6BA32-0XB0
• Product Type: Digital I/O expansion module
• System: SIMATIC S7-1200
• I/O Type: Mixed digital inputs and outputs
• Mounting: Directly on S7-1200 CPU
• Status Indication: LED per channel
• Application Environment: Industrial automation and control panels

Compliance & Standards

• Designed for use with Siemens SIMATIC S7-1200 controllers
• Manufactured according to Siemens industrial automation standards
• Suitable for low-voltage control and signal processing
• Tested for electrical safety and EMC compliance

Applications

The Siemens 6ES7226-6BA32-0XB0 digital I/O module is used to expand the number of digital inputs and outputs available on SIMATIC S7-1200 PLC systems. It enables direct connection of switches, sensors, relays, and actuators in machine control, manufacturing systems, building automation, and industrial process applications.
