Siemens Simatic Operator panel OP 73 3 LC display Part number 6AV6641-0AA11-0AX0

Product Overview

Spare Part Notice: This product is available as a spare part. Product was deleted without replacement. If you need assistance, please contact your local Siemens office.

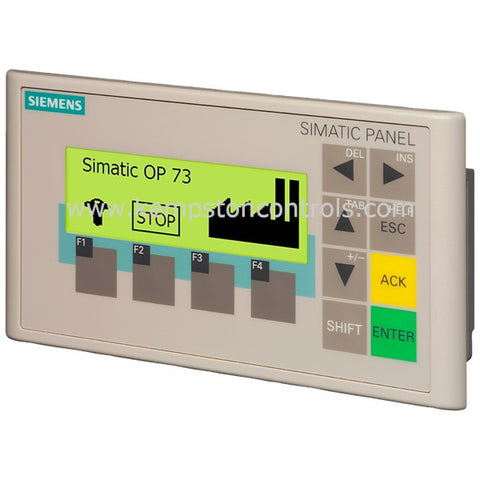

The SIMATIC Operator Panel OP 73 is a compact 3-inch LCD operator panel designed for cost-effective visualization and control in industrial automation applications. This graphics-capable panel features a backlit LC display with excellent readability and provides essential HMI functionality for machine operation and monitoring directly on-site in manufacturing, process, and building automation environments.

Key Features

• Display: 3-inch LC display with backlighting and graphics capability
• Technology: STN (Super-Twisted Nematic) display technology
• Resolution: 160 x 48 pixels for clear visualization
• Display Type: Black and white with high contrast
• Operation: 4-key membrane keyboard for user input
• Communication: MPI/PROFIBUS DP interface up to 1.5 Mbit/s
• Memory: Up to 1.5 MB configuration memory
• Programming: Configurable with WinCC flexible 2004 Compact HSP
• Open Source: Contains open-source software provided free of charge

Technical Specifications

• Article Number: 6AV6641-0AA11-0AX0
• Display Size: 3 inches (diagonal)
• Resolution: 160 x 48 pixels (horizontal x vertical)
• Current Consumption: 0.1 A
• Backlighting MTBF: Approximately 100,000 hours at 25°C
• Net Weight: 0.291 kg
• Packaging Dimensions: 9.50 x 18.10 x 5.30 cm
• Country of Origin: Germany
• EAN: 4025515071440

Communication Interfaces

• MPI Interface: Multi-Point Interface for direct PLC connection
• PROFIBUS DP: Industrial fieldbus communication up to 1.5 Mbit/s
• RS485: Serial communication interface for process connections
• Configuration: Download interface for project configuration

Display Features

• Backlighting: Integrated backlight for improved readability
• Graphics Capability: Support for graphic elements and symbols
• Contrast: High-contrast black and white display
• Durability: Long-life backlighting with 100,000-hour MTBF
• Visibility: Clear display suitable for various lighting conditions

Input System

• Membrane Keyboard: 4-key durable membrane keyboard
• Response: Tactile feedback for reliable operation
• Durability: Industrial-grade membrane switches
• Layout: Compact key arrangement for space-efficient operation

Applications The OP 73 is ideally suited for:

• Basic machine operation and monitoring
• Process visualization in manufacturing environments
• Building automation control interfaces
• Cost-effective HMI solutions for simple applications
• Direct on-site operation of machines and systems
• Integration into Siemens automation systems

Software Compatibility

• Configuration Software: WinCC flexible 2004 Compact HSP and upwards
• Programming Environment: STEP 7 compatible
• Project Memory: Up to 1.5 MB for application data
• Open Source Support: Includes free open-source software components

Environmental Protection

• Front Protection: IP65 rating (dust and water protection)
• NEMA Compliance: NEMA 4x standards when properly installed
• Industrial Standards: CE, UL certified for industrial applications
• Marine Approvals: Suitable for marine environments

Compliance & Certifications

• RoHS directive compliant since 31.03.2008
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: ECCN: N / AL: N

REACH Regulation Notice This product contains substances from the candidate list in concentrations higher than 0.1% weight by weight:

• Lead
• 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on currently available information, these substances do not pose any risk when the articles are used as intended, including disposal. Please refer to product documentation for details.
