Siemens Simatic IPC227E, Nanobox PC, 24VDC industrial power supply
📄 Datasheet
Siemens

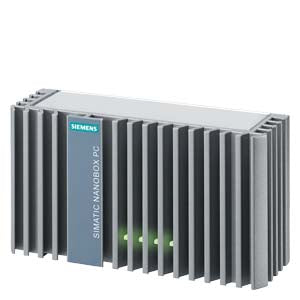

Siemens Simatic IPC227E, Nanobox PC, 24VDC industrial power supply Part number 6ES7647-8BA11-7CA1

Product Type Control Panel
Product Class Industrial PC
ETIM Class Industrial PC
In Stock
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SIMATIC IPC227E (Nanobox PC); 1x display port; 2x 10/100/1000 Mbit/s Ethernet RJ45; 1 x USB3.0, 3 x USB2.0; CFast slot; 24 V DC industrial power supply

Technical Specifications

Compliance/StandardsIEC 60068-2, EN 61000-6, IEC 60068-, IEC 61000-4
country_of_originGermany
Degree of protection (IP)IP40
Depth60 mm
descriptionSIMATIC IPC227E (Nanobox PC); 1x display port; 2x 10/100/1000 Mbit/s Ethernet RJ45; 1 x USB3.0, 3 x USB2.0; CFast slot; 24 V DC industrial power supply Celeron N2807 (2C/2T) 2 GB RAM; Box: Basis without COM Windows 10 IoT Enterprise LTSB 2016, 64 bit, MUI (en, de, fr, it, es) 240 GB SSD; without SIMATIC software DIN rail mounting
Height100 mm
IP RatingIP40
IP Rating DetailedIP40 Standards, approvals, certificates CE mark Yes UL approval Yes UL 508 Yes cULus Yes RCM (formerly C
Max. main memory8000 MB
Number of free PCIe-slots1
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-2322
Number of HW-interfaces RS-4222
Number of HW-interfaces RS-4852
Number of HW-interfaces USB4
Operating temperature60 °C
Part Depth (mm)60mm
Part Height (mm)100mm
Part Width (mm)191mm
Supply voltage DC28.8 V
Weight (g)2,100 Kg
Width191 mm
