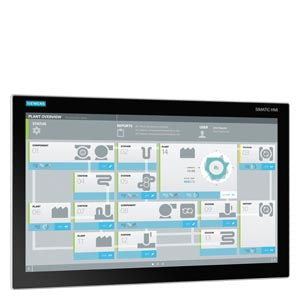

Siemens Simatic IPC 477E 22" multitouch, 4 USB Part number 6AV7241-3LJ07-0FA2

Product Overview

The Siemens SIMATIC IPC 477E 22″ MT (1920 × 1080) is an industrial all-in-one panel PC designed for machine-side operation where ruggedness and reliability are essential. It features an Intel Core i3-6102E processor, 8 GB ECC memory, a 240 GB SSD, a full-HD 22″ multitouch display, triple Gigabit Ethernet (IE/PN) ports, and a fanless design for maintenance-free operation. This industrial-grade system ensures high performance, long-term availability, and easy integration with SIMATIC automation environments.

Key Features

• Display: 22″ full-HD multi-touch (1920 × 1080) for advanced HMI visualization
• Processor: Intel Core i3-6102E industrial CPU for demanding control tasks
• Networking: Triple Gigabit Ethernet ports with integrated PROFINET switch
• Memory & Storage: 8 GB ECC memory with NVRAM and 240 GB SSD
• Cooling: Fanless, maintenance-free embedded design for continuous use
• Form Factor: Compact housing for machine or panel installation
• Integration: Seamless operation with SIMATIC ecosystem and TIA Portal software

Technical Specifications

• Product Type: SIMATIC IPC 477E
• Display Size: 21.5″ (22″ class) multi-touch TFT
• Resolution: 1920 × 1080 pixels (Full HD)
• Processor: Intel Core i3-6102E dual-core (2.1 GHz)
• Memory: 8 GB DDR4 ECC with NVRAM (expandable up to 16 GB)
• Storage: 240 GB SSD
• Ethernet Interfaces: 3 × RJ-45 (Gigabit, PROFINET compatible)
• USB Ports: 4 × USB 3.0
• Power Supply: 100–240 V AC (50/60 Hz) or optional 24 V DC
• Power Consumption: Max. 88 W
• Protection Class: Front IP65 / Rear IP20
• Operating Temperature: 0 °C to +45 °C
• Mounting: Panel or cabinet installation
• Dimensions (W × H × D): 529 mm × 331 mm × 76 mm
• Weight: Approx. 7.9 kg

Compliance & Certifications

• CE Marking: Compliant with EU Machinery and Low Voltage Directives
• UL / CSA: Certified for industrial control equipment
• EAC / FCC / RCM: Compliant with international market standards
• RoHS / REACH: Environmentally safe and sustainable
• EMC Compliance: Meets EN 61000-6-4 and CISPR Class A standards
• Protection Class: IP20 for panel-mounted operation
• Manufacturing Quality: Built under ISO 9001 quality management system

Applications

Ideal for industrial automation systems, control cabinets, and machine-level operator interfaces. Commonly used in packaging machinery, material-handling systems, production lines, and process plants. Perfect for applications requiring high-performance HMI functionality, robust network connectivity, and long-term operational reliability in demanding environments.
