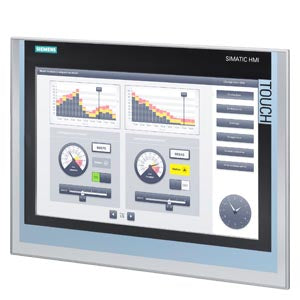

Siemens Simatic HMI TP1500 Comfort panel, touch, 15" widescreen
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic HMI TP1500 Comfort panel, touch, 15" widescreen Part number 6AV2124-0QC02-0AX2

EAN / Barcode 4025515732167
Product Type Control Panel
Product Class Graphic panel
ETIM Class Graphic panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

The Siemens SIMATIC HMI TP1500 Comfort (SKU: 6AV2124-0QC02-0AX2) is a 15.4″ widescreen TFT operator panel featuring a high-resolution 1280×800 display with 16 million colours. It supports PROFINET and MPI/PROFIBUS DP interfaces, and is designed for demanding industrial HMI applications.

Key Features

  • 15.4″ widescreen TFT display with 16 million colours
  • Touch operation for intuitive control
  • PROFINET + MPI/PROFIBUS DP connectivity
  • Industrial protection: Front IP65, rear IP20
  • Housing: 415 mm × 310 mm front; overall depth 73.2 mm

Technical Specifications

  • Product Type: SIMATIC HMI TP1500 Comfort Panel
  • Article Number: 6AV2124-0QC02-0AX2
  • Display Resolution: 1280 × 800 pixels
  • Screen Diagonal: 15.4″
  • Memory (User): 24 Mbyte
  • Supply Voltage: 24 V DC (19.2–28.8 V)
  • Current Consumption (Rated): 1.7 A
  • Weight (Approx.): 4.4 kg

Compliance & Certifications

  • CE, cULus, FM, RCM, EAC certified
  • ATEX / IECEx Zone 2/22 compatible
  • Protected front panel to NEMA Type 4 / 4X

Applications

Ideal for operator control and monitoring in industrial automation systems, this HMI panel is suited for machine control, process lines, and mobile operator stations requiring a large widescreen interface with robust field connectivity.

Technical Specifications

Additional software components, loadableYes
Built-in depth73.2 mm
Colour displayYes
Degree of protection (IP), front sideIP65
Height of the front310 mm
Number of colours of the display16777216
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-4851
Number of HW-interfaces USB2
Number of interfaces PROFINET2
Number of online languages32
Number of password levels50
Number of pixels, horizontal1280
Number of pixels, vertical800
Operating temperature0 °C
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal15.4 inch
Supply voltage DC19.2 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
Type of displayTFT
Useful project memory/user memory24000 kByte
Voltage type (supply voltage)DC
Width of the front415 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With printer outputYes
With recipesYes
