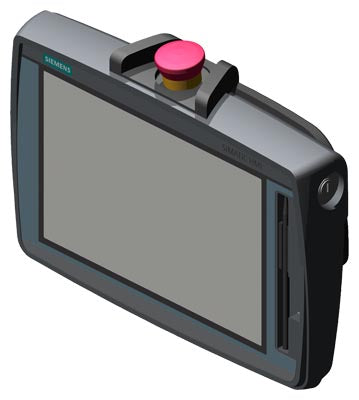

Siemens SIMATIC HMI TP1000F Mobile 10.0" TFT display, 128/0x800pixels Part number 6AV2145-6KB20-0AS0

Product Overview

The Siemens SIMATIC HMI TP1000F Mobile (SKU: 6AV2145-6KB20-0AS0) is a 10.1" mobile operator panel from the SIMATIC HMI Comfort family. It features a high-resolution TFT widescreen display with 1280 × 800 pixels and 16 million colors. The device includes an integrated emergency stop, acknowledgement button, and key-operated switch, providing safety and flexibility for mobile machine control via PROFINET connection.

Key Features

• 10.1" TFT widescreen display (1280 × 800 pixels, 16 million colors)
• Touch and key operation with ergonomic design
• Integrated emergency stop, acknowledgement button, and key switch
• Industrial-grade construction for mobile applications
• PROFINET communication interface
• Front protection class: IP65

Technical Specifications

• Product Type: SIMATIC HMI TP1000F Mobile Panel
• Article Number: 6AV2145-6KB20-0AS0
• Display: 10.1" TFT, 1280 × 800 pixels
• Colors: 16 million
• Operation: Touch and key
• Interfaces: 1 × PROFINET
• Power Supply: 24 V DC (±20%)
• Degree of Protection: IP65 (front)
• Operating Temperature: 0 °C to +50 °C
• Weight: Approx. 1.6 kg
• Dimensions (W × H × D): 307.5 × 223.5 × 56 mm

Compliance & Certifications

• Complies with IEC industrial standards for HMI systems
• Meets Siemens SIMATIC quality and safety standards
• RoHS and REACH compliant

Applications

The SIMATIC HMI TP1000F Mobile is ideal for machine-level operation and monitoring, enabling flexible and safe control of equipment in industrial automation. It is suited for production lines, mobile workstations, and environments requiring mobility and integrated safety functions.
