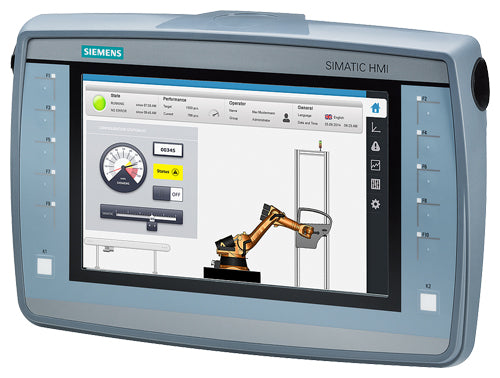

Siemens Simatic HMI KTP900F Mobile, 9.0" TFT display
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic HMI KTP900F Mobile, 9.0" TFT display Part number 6AV2125-2JB23-0AX0

EAN / Barcode 4047623404750
Product Type Control Panel
Product Class Mobile panel
ETIM Class Mobile panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

The Siemens SIMATIC HMI KTP900F Mobile (SKU: 6AV2125-2JB23-0AX0) is a 9″ widescreen mobile operator panel featuring an 800 × 480 pixel TFT display and 16 million colours. It supports both key and touch operation, includes 10 programmable function keys, and is designed for industrial mobile HMI use—ideal for machine-side control and portable operator stations.

Key Features

  • 9″ widescreen TFT display with 800 × 480 px resolution
  • 16 million colours for crisp visualisation
  • Key and touch operation for flexible user interaction
  • 10 function keys with LEDs (programmable)
  • Mobile-ready design—ideal for operator panels and handheld use in industrial environments

Technical Specifications

  • Product Type: SIMATIC HMI KTP900F Mobile Panel
  • Article Number: 6AV2125-2JB23-0AX0
  • Display Size: 9″ (diagonal)
  • Resolution: 800 × 480 pixels
  • Colour Depth: 16 million colours
  • Function Keys: 10 (with LED indicators)
  • Operation Modes: Key and touch
  • Supply Voltage: 24 V DC (nominal)
  • Weight (approx.): ~1.5 kg (based on typical mobile HMI panel specification)

Applications

Ideal for mobile operator stations, machine-side control and monitoring, and industrial settings where portability, touch/key interface and rugged usability are required. The KTP900F Mobile enables operators to move around equipment while maintaining full HMI capabilities.

Technical Specifications

Colour displayYes
Connection, pluggableYes
Degree of protection (IP)IP65
Depth91 mm
Height223.7 mm
Max. fall height according to IEC 60068-2-321.2 m
Number of buttons with LED10
Number of colours of the display16777216
Number of function buttons, programmable10
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces USB1
Number of interfaces PROFINET1
Number of online languages32
Number of password levels50
Number of pixels, horizontal800
Number of pixels, vertical480
Operating temperature45 °C
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal9 inch
Suitable for emergency stopYes
Suitable for safety functionsYes
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeYes
Supporting protocol for TCP/IPYes
Useful project memory/user memory12000 kByte
Voltage type (supply voltage)DC
Weight1.6 kg
Width306.5 mm
With enabling button/emergency-stop switchYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With recipesYes
With touch screenYes
Weight1.6 kg
