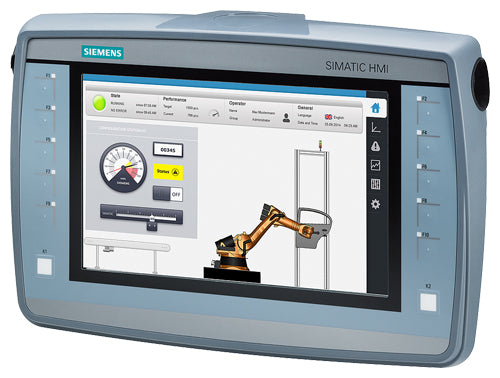

Siemens Simatic HMI KTP900 mobile, 9.0" TFT display, 800x480 pixel Part number 6AV2125-2JB03-0AX0

Product Overview

The Siemens SIMATIC HMI KTP900 Mobile (SKU: 6AV2125-2JB03-0AX0) is a 9" widescreen mobile operator panel with a TFT display (800 × 480 px) and 16 million colors. It supports both key and touch operation, includes 10 programmable function keys, and provides PROFINET/Industrial Ethernet connectivity plus a multimedia card slot and USB interface. With all-round IP65 protection, it is designed for demanding industrial mobile HMI applications.

Key Features

• 9" widescreen TFT display, 800 × 480 px
• 16 million colors for clear visualization
• Key and touch operation for flexible use
• 10 programmable function keys with LEDs
• Interfaces: 1 × PROFINET/Industrial Ethernet, 1 × multimedia card slot, 1 × USB
• All-round IP65 protection

Technical Specifications

• Product Type: SIMATIC HMI KTP900 Mobile
• Article Number: 6AV2125-2JB03-0AX0
• Display Size: 9" diagonal
• Resolution: 800 × 480 px
• Color Depth: 16,777,216 colors
• Function Keys: 10 (with LEDs)
• Supply Voltage: 24 V DC (19.2 – 28.8 V)
• Rated Current: ~450 mA
• Power Input (typical): ~11 W
• Protection Rating: IP65 (all-round)
• Operating Temperature: 0 °C to +45 °C
• Storage/Transport Temperature: −20 °C to +60 °C
• Dimensions (W × H): 307.5 × 200.9 mm
• Weight (approx.): ~1.5 kg

Compliance & Certifications

• CE, cULus, RCM
• Suitable for marine classification (GL, ABS, DNV, LRS, NK)
• RoHS compliant

Applications

Ideal for portable machine operation and monitoring in industrial automation. The KTP900 Mobile enables ergonomic, reliable control for mobile operator stations and machine-side applications in harsh environments.
