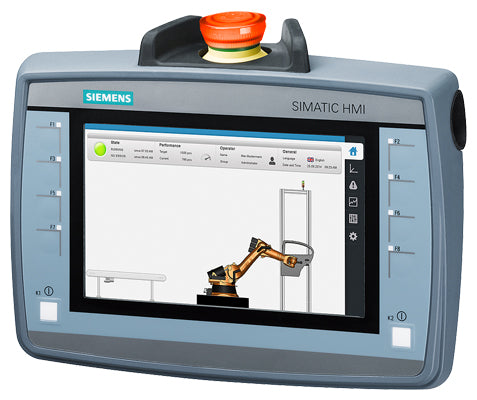

Siemens Simatic HMI KTP700F Mobile, 7" TFT display, 800x480 pixel, 16m colours Part number 6AV2125-2GB23-0AX0

Product Overview

The Siemens SIMATIC HMI KTP700F Mobile (SKU: 6AV2125-2GB23-0AX0) is a 7-inch mobile operator panel from the SIMATIC HMI family. It features a bright 7" TFT widescreen display with 800 × 480 pixel resolution, 16 million colors, and both touch and key operation (8 function keys). The panel includes an integrated Emergency Stop button, acknowledgment key, and key-operated switch, providing a safe and flexible interface for mobile machine operation. It connects via PROFINET and is engineered for reliable use in demanding industrial environments.

Key Features

• 7" widescreen TFT display (800 × 480 pixels, 16 million colors)
• Combined touch and key operation with 8 programmable function keys
• Integrated Emergency Stop, acknowledgment, and key-operated switch
• PROFINET interface for fast and reliable industrial communication
• Rugged mobile design for flexible operation and enhanced operator safety
• Configurable with WinCC Comfort or WinCC Advanced software

Technical Specifications

• Product Type: SIMATIC HMI KTP700F Mobile Panel
• Article Number: 6AV2125-2GB23-0AX0
• Display: 7" TFT, 800 × 480 pixels, 16 million colors
• Operation: Touch and 8 function keys
• Interfaces: 1 × PROFINET / Ethernet, 1 × USB
• Integrated Functions: Emergency Stop, acknowledgment key, key switch
• Memory Card Support: SIMATIC HMI memory card
• Weight (approx.): 1.3 kg
• Dimensions (W × H × D): 266 × 185 × 56 mm
• Power Supply: 24 V DC (±20%)
• Operating Temperature: 0 °C to 50 °C
• Degree of Protection: IP65 (front), IP20 (rear)

Compliance & Certifications

• Complies with IEC 61131 and IEC 61010 for industrial control equipment
• Meets Siemens SIMATIC HMI safety and quality standards
• CE, UL, and cUL certified
• RoHS compliant

Applications

The SIMATIC HMI KTP700F Mobile is ideal for mobile machine operation, maintenance stations, and production lines where safety and flexibility are essential. Its integrated safety functions, ergonomic design, and durable construction make it suitable for use in industrial automation systems, packaging machines, and mechanical engineering applications. It provides operators with intuitive, safe, and efficient control over machines and processes in any production environment.
