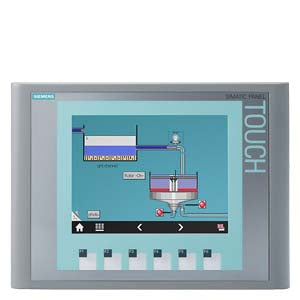

Siemens Simatic HMI KTP600 Basic panel, key/touch, 6" TFT display Part number 6AV6647-0AD11-3AX1

Name: Siemens Simatic HMI KTP600 Basic panel, key/touch, 6" TFT display
Brand: Siemens
SKU: 6AV6647-0AD11-3AX1

EAN / Barcode 4047618123741

Product Type Control Panel

Product Class Graphic panel

ETIM Class Graphic panel

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

✓ RoHS Declaration

Product Description

Product Overview

SIMATIC HMI KTP600 Basic Color PN, Basic Panel, key/touch operation, 6" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD

Key Features

Dual Operation Modes: Key and touch operation for flexible user interaction and intuitive control
Color TFT Display: 6" (5.7" diagonal) TFT display with 320 x 240 pixel resolution and 256 colors
PROFINET Connectivity: Integrated PROFINET interface for seamless industrial network integration
Software Compatibility: Configurable with WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5
Function Keys: 6 freely configurable tactile keys with LED indicators for customizable operation

Technical Specifications

Article Number: 6AV6647-0AD11-3AX1
Display Technology: 6" TFT with 320 x 240 pixel resolution, 256 colors, 5.7" diagonal
Operation Methods: Key operation (6 function keys) and touch screen operation
Communication Interface: PROFINET (RJ45 Ethernet)
Power Supply: 24V DC
Physical Properties: Net Weight: 2.661 lb | Packaging: 7.677 x 10.118 x 3.504 inches
Protection Rating: IP65 (front) / IP20 (rear)
Identifiers: UPC: 195125279612 | Country of Origin: Germany

Display Specifications

Screen Type: TFT color display with LED backlighting
Screen Size: 5.7" diagonal (6" nominal)
Resolution: 320 x 240 pixels
Color Depth: 256 colors for clear process visualization
Mounting: Vertical installation with maximum 35° mounting angle
Brightness: Dimmable backlighting up to 100%

Interface & Connectivity

Communication: PROFINET interface via RJ45 Ethernet port
Supported Protocols: PROFINET, EtherNet/IP, MODBUS TCP/IP
Processor: RISC 32-bit for efficient HMI performance
Memory: Configuration memory for HMI applications
Software Support: WinCC flexible, WinCC Basic, STEP 7 Basic, TIA Portal

Applications

Basic HMI functionality for small to medium industrial applications
Machine operation and monitoring interfaces
Process visualization for manufacturing and automation
Control panel integration for mechanical engineering applications
Entry-level HMI solutions for cost-sensitive projects

Environmental & Installation

Operating Temperature: 0°C to +50°C
Installation Position: Vertical mounting (standard), up to 35° angle
Front Panel Protection: IP65 (dust and water resistant)
Rear Panel Protection: IP20 (industrial environment standard)
Mounting Dimensions: 214mm (W) x 158mm (H) x 44mm (D)

Software & Configuration

Configuration Software: WinCC flexible 2008 SP2 Compact or higher
Modern Software: WinCC Basic V10.5, STEP 7 Basic V10.5, TIA Portal
HMI Functions: Alarm system, recipe management, trend curves, language switching
Open Source: Contains open-source software provided free on enclosed CD
Scalability: Flexible integration within SIMATIC HMI family

Product Status

Availability: Limited to remaining stock and service parts
RoHS Compliance: Since 04/23/2023
WEEE Take-Back: Yes

Compliance

Export Control: ECCN: EAR99H / AL: N

Download existing graphical data for this product:

Technical Specifications

Built-in depth	44 mm
Colour display	Yes
Current Consumption	0.35 A
Degree of protection (IP), front side	IP65
Height of the front	158 mm
IP Rating	IP20 / IP65
Number of colours of the display	256
Number of function buttons, programmable	6
Number of HW-interfaces industrial Ethernet	1
Number of interfaces PROFINET	1
Number of online languages	5
Number of password levels	50
Number of pixels, horizontal	320
Number of pixels, vertical	240
Operating temperature	50 °C
Part Depth (mm)	44mm
Part Height (mm)	158mm
Part Width (mm)	214mm
Process default value (input) possible	Yes
Process value representation (output) possible	Yes
Screen diagonal	5.7 inch
Supply Voltage	24 VDC
Supply voltage DC	19.2 V
Supporting protocol for EtherNet/IP	Yes
Supporting protocol for Modbus	Yes
Supporting protocol for TCP/IP	Yes
Temperature: Operating	-0 °C to 50 °C
Touch technology	Resistive touch
Type of display	TFT
Useful project memory/user memory	1000 kByte
Voltage type (supply voltage)	DC
Weight (g)	1070g
Width of the front	214 mm
With alpha numeric keyboard	Yes
With message indication	Yes
With message system (incl. buffer and confirmation)	Yes
With numeric keyboard	Yes
With recipes	Yes
