Siemens Simatic HMI KTP400 Basic panel, key/touch operation, 4"
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic HMI KTP400 Basic panel, key/touch operation, 4" Part number 6AV6647-0AA11-3AX0

EAN / Barcode 6940408100589
Product Type Control Panel
Product Class Graphic panel
ETIM Class Graphic panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

Spare Part Notice: This product is available as a spare part. Please visit the Spares & Service section for more information. If you need assistance, contact your local Siemens office.

The SIMATIC HMI KTP400 Basic mono PN is a compact 4-inch Basic Panel designed for simple HMI applications in compact machines and plants. This entry-level operator panel features key/touch operation with a monochrome STN display supporting 4 gray levels, making it ideal for cost-effective process visualization and control.

Key Features

  • Display: 4-inch STN monochrome display with 320 x 240 pixel resolution
  • Gray Levels: 4 grayscale levels for clear visualization
  • Operation: Combined key and touch operation for versatile user interaction
  • Interface: PROFINET connectivity for seamless integration into automation networks
  • Programming: Configurable with WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5
  • Software: Contains open-source software provided free of charge (see enclosed CD)

Technical Specifications

  • Article Number: 6AV6647-0AA11-3AX0
  • Net Weight: 0.534 kg
  • Packaging Dimensions: 14.60 x 16.90 x 9.00 cm
  • Country of Origin: Germany
  • EAN: 6940408100589

Compliance & Certifications

  • RoHS directive compliant since 31.03.2009
  • WEEE (2012/19/EU) Take-Back Obligation: Yes
  • Export Control: ECCN: N / AL: N

REACH Regulation Notice This product contains substances from the candidate list in concentrations higher than 0.1% weight by weight:

  • Lead
  • Lead monoxide (lead oxide)

Based on currently available information, these substances do not pose any risk when the articles are used as intended, including disposal. Please refer to product documentation for details.

Applications The KTP400 Basic mono PN is perfectly suited for:

  • Simple operator control and monitoring tasks
  • Compact machine and plant applications
  • Entry-level HMI requirements
  • Cost-sensitive automation projects requiring basic visualization

Download existing graphical data for this product:

Technical Specifications

Built-in depth40 mm
Degree of protection (IP), front sideIP65
Height of the front116 mm
Number of colours of the display4
Number of function buttons, programmable4
Number of grey-scales/blue-scales of display4
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET1
Number of online languages5
Number of password levels50
Number of pixels, horizontal320
Number of pixels, vertical240
Operating temperature0 °C
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal3.8 inch
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Touch technologyResistive touch
Type of displaySTN
Useful project memory/user memory1000 kByte
Voltage type (supply voltage)DC
Width of the front140 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With recipesYes
Part Width14 mm
Part Height16 mm
Part Depth9 mm
Weight534 g
Country of OriginGermany
View complete specifications on Siemens

Compatible Accessories & Components

Related products

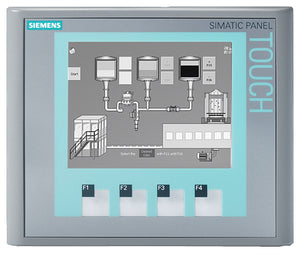

Siemens Simatic HMI KTP400, basic mono PN, 4"
