Siemens Key panel, 8 short-stroke switches, multi-colored LED Part number 6AV3688-3AY36-0AX0

Name: Siemens Key panel, 8 short-stroke switches, multi-colored LED
Brand: Siemens
SKU: 6AV3688-3AY36-0AX0

EAN / Barcode 4025515079156

Product Type Control Panel

Product Class Push button panel

ETIM Class Push button panel

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

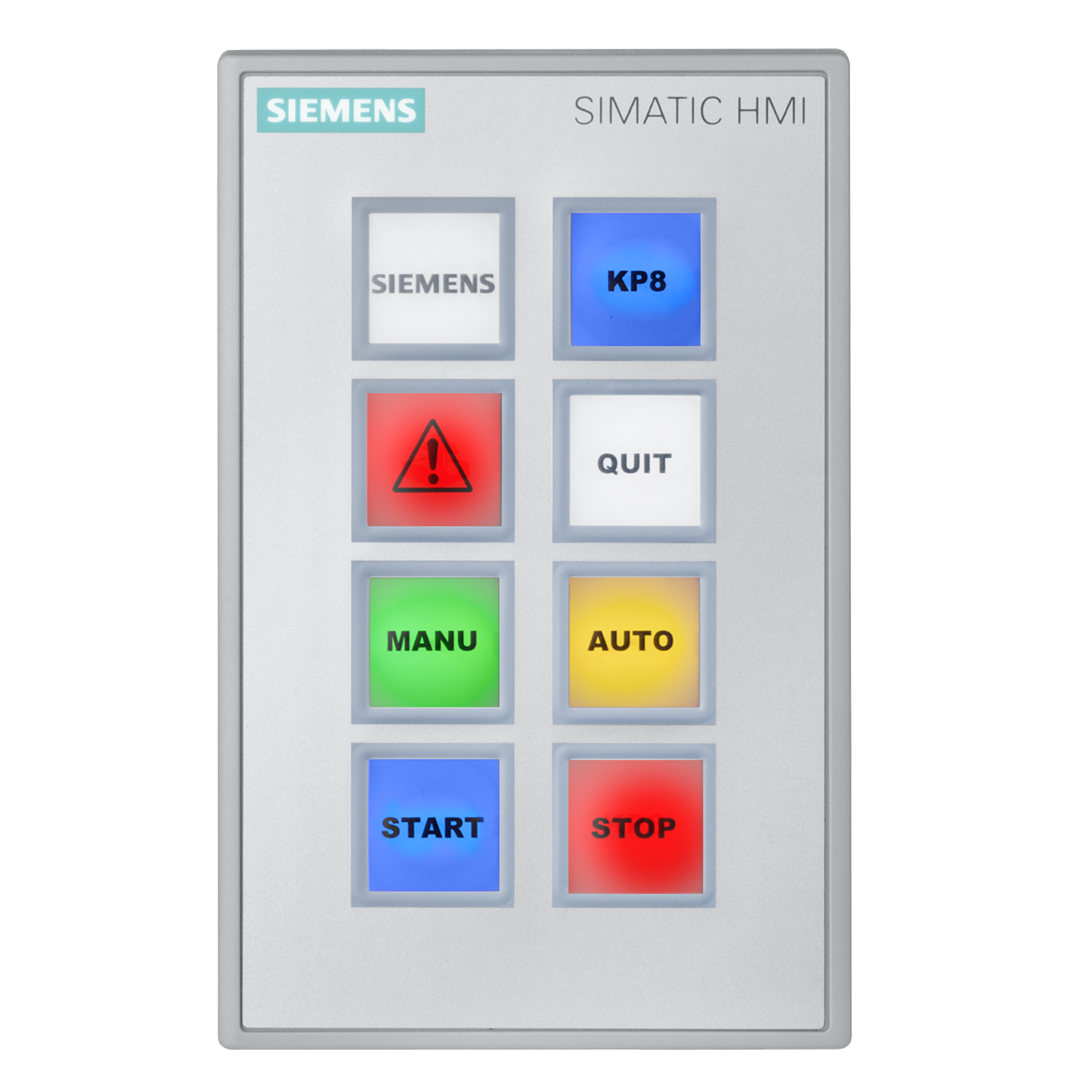

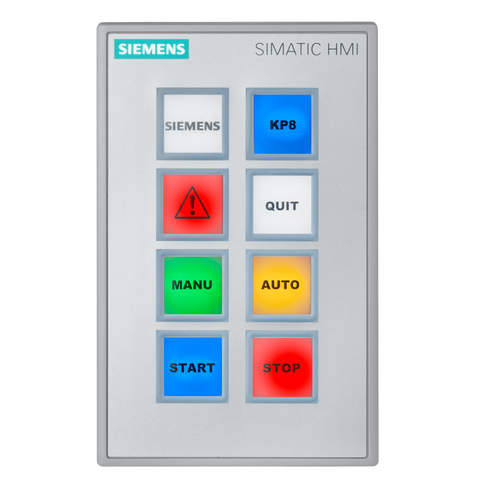

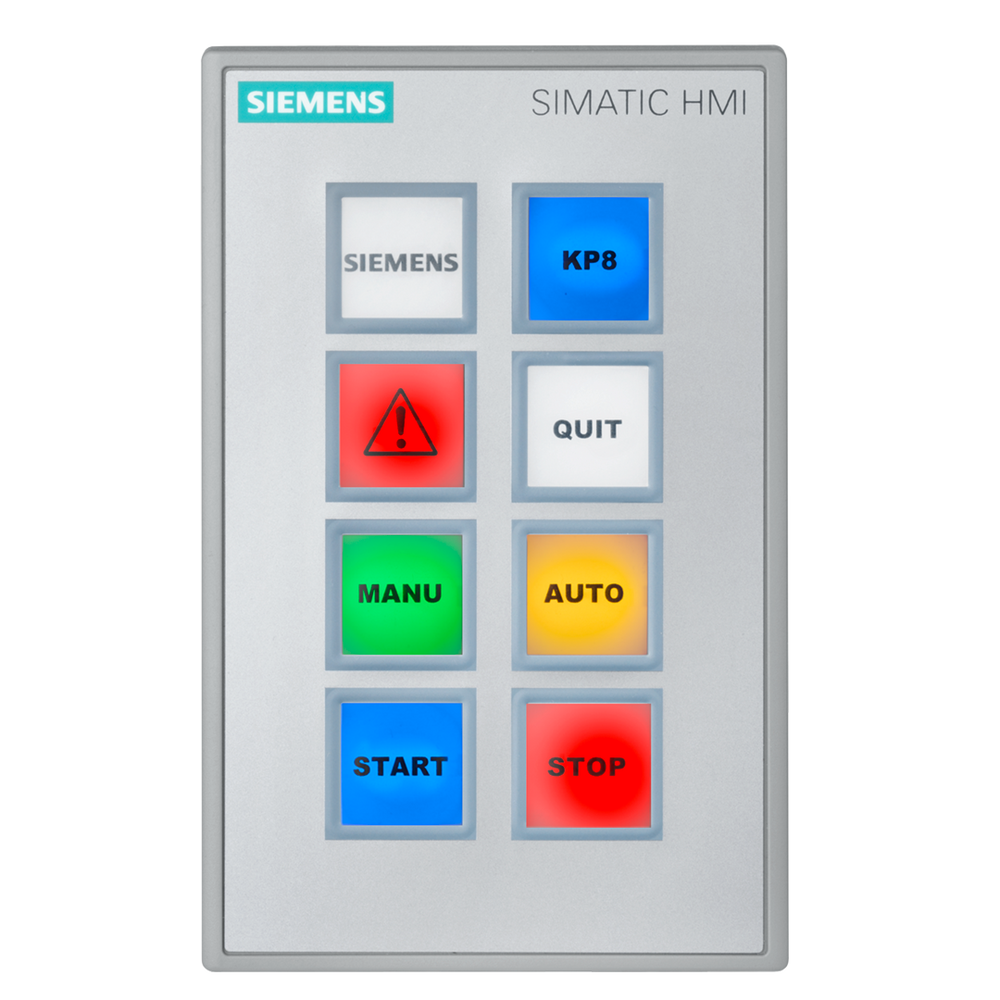

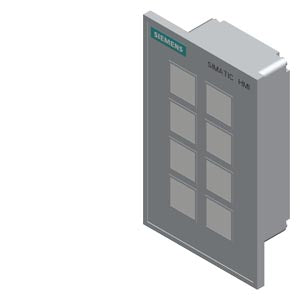

SIMATIC HMI KP8 PN Key Panel with 8 short-stroke switches featuring multi-colored LEDs, PROFINET interfaces, 8 configurable DI/DO pins, 24 V DC loop-through capability, parameterizable from STEP 7 V5.5. Ready-to-run operator panel requiring no configuration effort, providing cost-effective alternative to individually wired pushbuttons with reduced installation costs.

Key Features

Ready-to-Run Design: 8 short-stroke switches with multi-colored LEDs (5 color modes) for immediate deployment without configuration effort
PROFINET Connectivity: Dual PROFINET interfaces with 8 configurable digital I/O pins for flexible automation integration
Cost-Effective Solution: Prefabricated panel reduces setup time, installation costs, and wiring complexity compared to individual switches

Technical Specifications

Article Number: 6AV3688-3AY36-0AX0

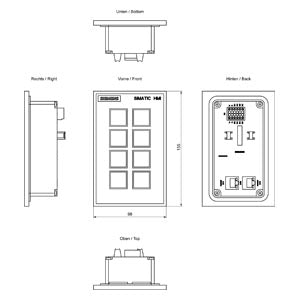

Design: 8 short-stroke switches, multi-colored LEDs, 98mm x 155mm front, 49mm built-in depth
Electrical: 8 configurable DI/DO pins, 24V DC supply with loop-through, 2 PROFINET interfaces
Physical Properties: Net Weight: 0.319 kg | Packaging: 10.60 x 18.30 x 6.50 cm
Identifiers: EAN: 4025515079156 | UPC: 040892728361 | Country of Origin: Germany

Configuration & Connectivity

Software: Parameterizable from STEP 7 V5.5 and later versions, TIA Portal integration
Network: Dual PROFINET interfaces supporting line and star topologies with real-time I/O communication
I/O Functions: 8 pins configurable as digital inputs or outputs for direct field device connection

Applications

Designed for direct machine operator control and monitoring, process control applications, safety functions, production line interfaces, equipment status monitoring, and industrial automation requiring operator interaction. Ideal for retrofit applications replacing conventional pushbutton panels.

Compliance

Status: PM300: Active Product | RoHS Compliant since 10.11.2010 | Export Control: AL: N / ECCN: 9N9999
REACH: Contains Lead, Lead monoxide, Silicic acid lead salt, and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one in concentrations >0.1% w/w (no risk when used as intended)

Installation Note: Professional installation recommended for industrial automation applications. Ensure proper PROFINET network configuration and safety circuit integration according to application requirements.

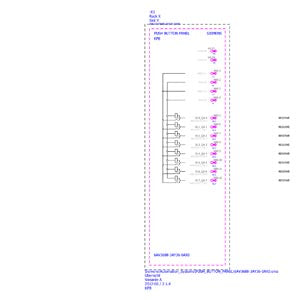

Download existing graphical data for this product:

Technical Specifications

Built-in depth	49 mm
country_of_origin	Germany
Degree of protection (IP), front side	IP65
description	SIMATIC HMI KP8 PN Key Panel, 8 short-stroke switches with multi-colored LEDs, PROFINET interfaces 8 configurable DI/DO pins, 24 V DC can be looped through parameterizable as of STEP 7 V5.5
Front built-in possible	Yes
Height of the front	155 mm
IP Rating	IP65
IP Rating Detailed	IP65 IP (rear) IP20 NEMA (front) Enclosure Type 4 at the front No Enclosure Type 4x at the front Yes
Number of buttons	8
Number of digital inputs	8
Number of digital outputs	8
Number of HW-interfaces industrial Ethernet	2
Number of indicator lamps	8
Number of interfaces PROFINET	2
Number of LED colour modes	5
Operating temperature	55 °C
Part Depth (mm)	6,50mm
Part Height (mm)	18,30mm
Part Width (mm)	10,60mm
Supply voltage DC	28.8 V
Supporting protocol for PROFINET IO	Yes
Voltage type (supply voltage)	DC
Weight (g)	0,326 Kg
Width of the front	98 mm
With parameterizable buttons	Yes
With test for buttons and indicator lamps	Yes
