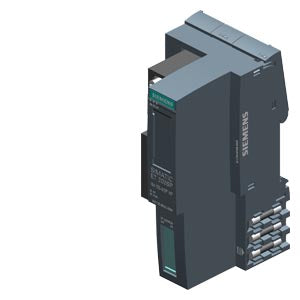

Siemens Simatic ET 200SP, Profibus bundle, 32 I/O + 16 ET 200AL Part number 6ES7155-6BA01-0CN0

Product Overview

The SIMATIC ET 200SP PROFIBUS Bundle IM 155-6DP HF delivers comprehensive distributed I/O connectivity for demanding industrial automation applications requiring reliable PROFIBUS communication. This complete interface module bundle supports up to 32 I/O modules and 16 ET 200AL modules with multi-hotswap capabilities, providing seamless integration between PROFIBUS networks and ET 200SP distributed I/O systems in space-constrained control environments.

Key Features

• IM 155-6DP HF Interface: High-feature PROFIBUS interface module optimized for ET 200SP systems with advanced diagnostic capabilities
• Multi-Hotswap Technology: Module replacement capability during operation without system shutdown or communication interruption
• High Module Capacity: Supports up to 32 I/O modules and 16 ET 200AL modules for comprehensive system expansion
• Complete Bundle Solution: Includes all necessary components for immediate installation and operation
• Compact Design: Space-efficient form factor ideal for installation in compact control boxes with IP20 protection rating
• Advanced Communication: PROFIBUS DP communication with high-speed data transfer and comprehensive diagnostic functions
• Flexible Configuration: Compatible with various ET 200SP I/O modules for customized automation solutions
• Industrial-Grade Reliability: Robust construction for demanding industrial environments with extended operational life

Technical Specifications

• Interface Module: IM 155-6DP HF (6ES7155-6BU01-0CN0) | Weight: 0.228 kg
• Module Capacity: Up to 32 I/O modules + 16 ET 200AL modules | Communication: PROFIBUS DP
• Hot-Swap Capability: Multi-hotswap supported | Protection Rating: IP20
• Bundle Components: 3-piece complete set | Package Dimensions: 8.30 x 12.10 x 6.20 cm
• Country of Origin: Germany | System Integration: ET 200SP distributed I/O
• Configuration: TIA Portal and STEP 7 compatible | Installation: DIN rail mounting

Bundle Components

• Interface Module (6ES7155-6BU01-0CN0): High-feature PROFIBUS interface for ET 200SP communication
• Server Module (6ES7193-6PA00-0AA0): Essential server functionality for system operation and diagnostics
• PROFIBUS Connector (6ES7972-0BB70-0XA0): Pre-configured connector for reliable PROFIBUS network connection

Applications & Integration

Primary Applications:

• Distributed I/O systems requiring PROFIBUS communication in manufacturing environments
• Industrial automation systems with space-constrained control cabinets
• Process control applications needing reliable field device connectivity
• Manufacturing systems requiring hot-swappable I/O modules for minimal downtime
• Factory automation with decentralized control architectures

System Compatibility:

• Compatible with SIMATIC S7 controllers via PROFIBUS DP communication
• Integration with TIA Portal and STEP 7 engineering environments
• Support for various ET 200SP I/O modules (digital, analog, communication)
• Compatible with ET 200AL modules for extended system functionality
• Seamless integration with existing PROFIBUS networks and infrastructure

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4047623409465 | UPC: 804766848582
• RoHS Compliant: Since October 31, 2018 | WEEE: Take-back obligation applicable
• REACH: Contains lead, lead monoxide, silicic acid lead salt, and other substances above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: 9N9999
• Standards: Complies with industrial automation and PROFIBUS communication standards

Package Contents

• 1 × Interface Module (6ES7155-6BU01-0CN0), 1 × Server Module (6ES7193-6PA00-0AA0), 1 × PROFIBUS Connector (6ES7972-0BB70-0XA0), technical documentation, installation accessories

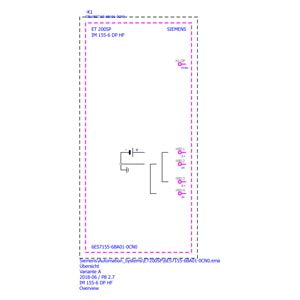

Download existing graphical data for this product:

• Product Information Page
• Official Support Documentation
• IM 155-6 DP HF Manual
• CAD Models and 3D Data
• ET 200SP System Manual
