Siemens Simatic ET 200SP Digital output module, DQ 4x 24VDC, 2A Part number 6ES7132-6BD20-0CA0

Product Overview

The SIMATIC ET 200SP Digital Output Module DQ 4x 24VDC/2A High Feature delivers high-performance digital output control with 4 channels of 24V DC/2A capacity for demanding industrial automation applications. Featuring advanced channel diagnostics and high-feature functionality, this module provides reliable sourcing output control for actuators, valves, and other industrial loads requiring robust 2A output capability within the ET 200SP distributed I/O system.

Important Notice: This product is cancelled (PM410: Product cancellation since 01.06.2025) and is only available for service and maintenance purposes. The successor product is 6ES7132-6BD21-0CA0.

Key Features

• 4-Channel Digital Output: 24V DC sourcing outputs with 2A per channel capacity for high-current industrial loads
• High Feature Functionality: Advanced module capabilities including PWM output, oversampling, and enhanced diagnostics
• Channel Diagnostics: Comprehensive diagnostics for short-circuit, wire break, supply voltage monitoring, and individual channel fault detection
• BU Type A0 Compatibility: Designed for use with SIMATIC ET 200SP BaseUnit type A0 configurations
• Color Code CC02: Standardized color coding for simplified identification and maintenance procedures
• Sourcing Output Design: PNP sourcing output configuration for reliable signal transmission and load control
• IP20 Protection: Industrial-grade protection suitable for control cabinet installation environments

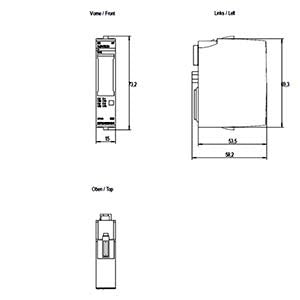

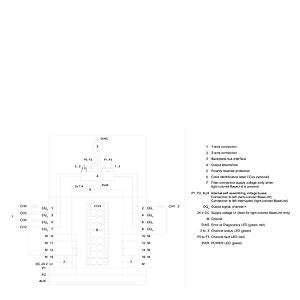

Technical Specifications

• Output Configuration: 4 digital outputs | Output Voltage: 24V DC
• Output Current: 2A per channel (sourcing) | Weight: 0.037 kg
• Output Type: Sourcing (PNP) | Protection Rating: IP20
• BaseUnit Compatibility: BU type A0 | Color Code: CC02
• Performance Level: Level d (EN ISO 13849-1) | Connection Type: Plug-in connection
• Package Dimensions: 6.80 x 7.50 x 2.70 cm | Operating Temperature: Standard industrial range
• ATEX Rating: Cat. 3G (gas explosion protection) | Dust Protection: None

Applications & Integration

Primary Applications:

• Industrial automation systems requiring high-current digital output control
• Actuator and valve control in process automation
• Motor starter and contactor control applications
• High-power solenoid and pneumatic system control

System Compatibility:

• Compatible with SIMATIC ET 200SP BaseUnit type A0
• Integration with SIMATIC S7-1500 and S7-1200 controllers
• PROFINET communication protocol support
• TIA Portal engineering environment compatibility
• Supports PWM output, oversampling, and diagnostic functions

Quality & Compliance

• Status: Cancelled Product (PM410) - Spare Part Only | Origin: Germany
• EAN: 4047623403302 | UPC: 887621789855
• RoHS Compliant: Since 25.02.2014 | WEEE: Take-back obligation applicable
• REACH: Contains lead, lead oxide, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, and bis(α,α-dimethylbenzyl) peroxide above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: 9N9999

Package Contents

• 1 × ET 200SP Digital Output Module DQ 4x 24VDC/2A High Feature, technical documentation, installation accessories
