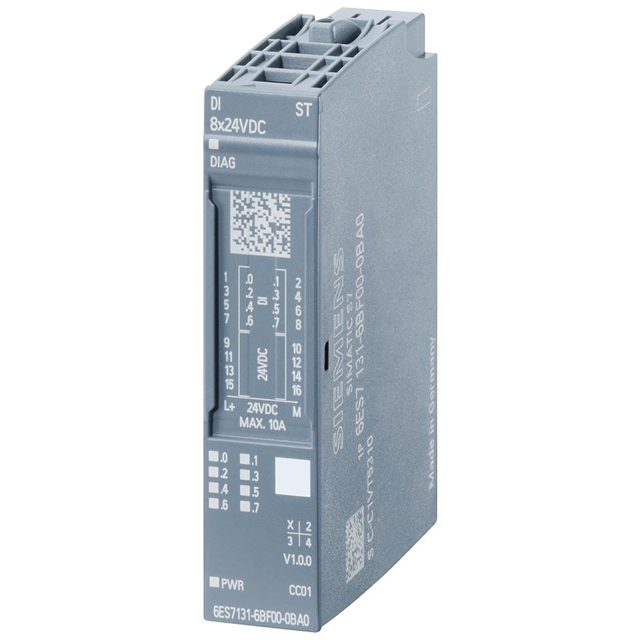

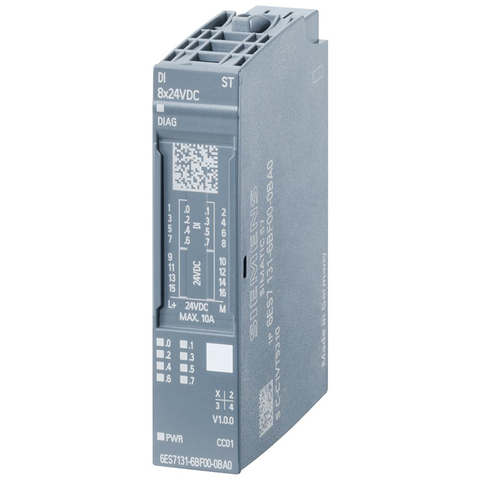

Siemens Simatic ET 200SP Digital input module

Product Overview

The SIMATIC ET 200SP Digital Input Module DI 8x 24V DC Basic delivers essential digital signal acquisition with 8 channels of 24V DC input capability for legacy industrial automation systems. This discontinued module provided reliable digital signal processing for sensors, switches, and field devices within the ET 200SP distributed I/O system. Enhanced with basic module diagnostics for fundamental system monitoring and maintenance applications.

Key Features

• 8-Channel Digital Input: Legacy 24V DC inputs for essential signal acquisition in existing systems
• Basic Module Diagnostics: Fundamental diagnostic capabilities for system status monitoring
• BU Type A0 Compatibility: Designed for use with SIMATIC ET 200SP BaseUnit type A0 configurations
• Color Code CC01: Standardized color coding for simplified identification and maintenance procedures
• Spare Part Availability: Available for maintenance and service of existing ET 200SP installations
• Proven Technology: Established digital input processing for legacy system support
• Compact Design: Space-efficient design optimized for cabinet installations

Technical Specifications

• Input Configuration: 8 digital inputs | Input Voltage: 24V DC
• Input Type: Basic digital input | Weight: 0.040 kg
• BaseUnit Compatibility: BU type A0 | Color Code: CC01
• Connection Type: Plug-in connection | Protection Rating: IP20
• Package Dimensions: 7.00 x 7.80 x 2.50 cm | Operating Temperature: Standard industrial range
• Diagnostics: Basic module diagnostics | Packing Quantity: 1 unit

Applications & Integration

Primary Applications:

• Legacy ET 200SP system maintenance and spare parts replacement
• Service and maintenance of existing industrial automation installations
• Digital input processing in discontinued ET 200SP configurations
• Emergency replacement for critical system components

System Compatibility:

• Compatible with SIMATIC ET 200SP BaseUnit type A0
• Integration with existing SIMATIC S7 controllers
• PROFINET communication protocol support
• Legacy TIA Portal engineering environment compatibility

Quality & Compliance

• Status: Discontinued Product (PM500) - Spare Part Only | Origin: Germany
• EAN: 4047623405535 | UPC: Not available
• RoHS Compliant: Since 31.03.2015 | WEEE: No take-back obligation
• REACH: Contains lead above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N

Package Contents

• 1 × ET 200SP Digital Input Module DI 8x 24V DC Basic, technical documentation, installation accessories
