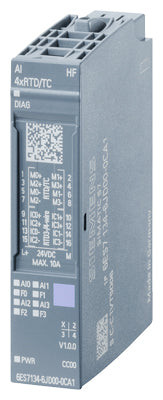

Siemens Simatic ET 200SP AI 4xRTD/TC Part number 6ES7134-6JD00-0CA1

Product Overview

The Siemens 6ES7134-6JD00-0CA1 is a High Feature analog input module for the SIMATIC ET 200SP distributed I/O system. It provides four input channels for temperature measurement using RTD or thermocouple sensors in 2-, 3- or 4-wire configurations. With high accuracy, extended diagnostics and flexible configuration options, it is well suited for process control, temperature monitoring and precision automation applications.

Key Features

• ET 200SP analog input module — AI 4×RTD/TC (High Feature)
• Supports RTD (2/3/4-wire), thermocouple, resistance and voltage modes
• 4 input channels for multi-point measurement
• High resolution 16-bit acquisition for accurate temperature readings
• Integrated diagnostics and I&M data support for maintenance and fault detection
• Compact ET 200SP form factor for control-panel space efficiency
• DIN-rail mounting with standard terminal connection

Technical Specifications

• Article Number: 6ES7134-6JD00-0CA1
• Type: Analog Input Module (High Feature)
• Channels: 4 analog inputs
• Sensor Support: RTD (PT100/PT1000 etc.), Thermocouple, Resistance, Voltage
• Resolution: 16-bit
• Accuracy: approx. ±0.1% depending on sensor and range
• Supply Voltage: 24 V DC (approx. 19.2–28.8 V range)
• Power Loss: approx. 0.75 W
• Diagnostics: Channel monitoring, sensor fault detection, I&M0–I&M3 data support
• Mounting: ET 200SP base unit / DIN-rail

Applications

Ideal for use in temperature measurement and analog acquisition within distributed control systems. Common applications include process automation, thermal control loops, industrial machinery, HVAC temperature monitoring, environmental sensing, and plant data collection. Suitable for installations requiring accurate multi-channel RTD/TC input within a compact ET 200SP system.
