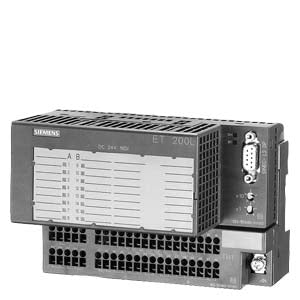

Siemens Simatic DP Terminal block, screw, 16 channels

Product Overview

The SIMATIC DP Terminal Block TB16L was designed for ET 200L distributed I/O systems requiring reliable terminal connections in industrial automation applications. This 16-channel terminal block featured screw terminals and provided the essential wiring interface for electronic modules, enabling secure electrical connections while supporting hot-swappable module replacement without cable disconnection in demanding industrial environments.

Key Features

• TB16L Configuration: Specialized 16-channel terminal block designed for ET 200L distributed I/O systems with proven reliability
• Screw Terminal Technology: Secure terminal connections for reliable electrical connections in industrial automation environments
• 16-Channel Capacity: Comprehensive terminal layout providing connections for 16 individual channels per block
• Electronic Module Interface: Designed to accommodate electronic blocks while carrying wiring for seamless module replacement
• Hot-Swappable Design: Module replacement capability without cable disconnection, reducing downtime during maintenance
• Standard DIN Rail Mounting: Compatible with standard rail mounting systems for flexible installation positions
• 2-Wire Connection System: Standard 2-wire connection system with optional additional terminals for 3-wire or 4-wire configurations
• Industrial-Grade Construction: Robust design for demanding industrial automation environments and extended operational life

Technical Specifications

• Terminal Block Type: TB16L (16-channel) | Dimensions: Standard ET 200L form factor
• Channel Count: 16 channels | Weight: 0.261 kg
• Connection Type: Screw terminals | Mounting: Standard DIN rail compatible
• System Compatibility: ET 200L distributed I/O system | Connection System: 2-wire standard (expandable to 3/4-wire)
• Package Dimensions: 10.90 x 15.00 x 4.80 cm | Country of Origin: Germany
• Installation Position: Any position on standard rail | Product Status: Discontinued (PM500)
• Wire Configuration: Optional additional terminals for multi-wire connections

Applications & Integration

Primary Applications:

• ET 200L distributed I/O systems requiring terminal connections for electronic modules
• Industrial automation systems with decentralized control architectures
• Process control applications needing reliable terminal interfaces
• Manufacturing systems requiring hot-swappable module capabilities
• Distributed control systems with standard DIN rail installations

System Compatibility:

• Compatible with SIMATIC ET 200L electronic modules
• Integration with SIMATIC S7 controllers via ET 200L interface
• PROFIBUS DP communication protocol support
• STEP 7 engineering environment compatibility
• Standard DIN rail mounting systems
• Flexible installation positioning capabilities

Quality & Compliance

• Status: Discontinued Product (PM500) - End of lifecycle since October 1, 2024
• Product Classification: Made to order / customer specifications (Class D)
• EAN: 4025515059684 | UPC: Not available
• RoHS Compliant: Since March 31, 2008 | WEEE: No take-back obligation
• Export Control: AL: N / ECCN: N
• Installation Environment: Industrial automation cabinet installations

Package Contents

• 1 × ET 200L Terminal Block TB16L, technical documentation, installation accessories
