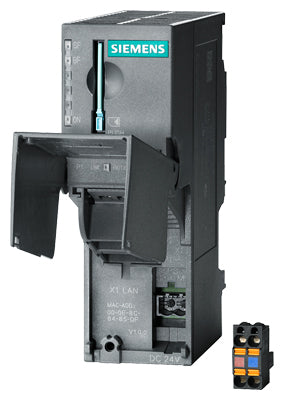

Siemens Simatic DP Interface module, 12 S7-300 modules Part number 6ES7153-4AA01-0XB0

Product Overview

Siemens SIMATIC DP Interface Module, 12 S7-300 Modules — IM 153-4 PN IO (6ES7153-4AA01-0XB0) is designed for the ET 200M distributed I/O system. It serves as the communication interface between a PROFIBUS controller and a rack of I/O modules, allowing distributed expansion of control systems. The module supports up to 12 S7-300 / ET 200M I/O modules per station and enables reliable real-time data exchange for automation networks.

Key Features

• Interface module for SIMATIC ET 200M distributed I/O
• Connects to PROFIBUS DP network
• Supports up to 12 S7-300 / ET 200M modules per station
• Real-time capable communication
• Hot-swap capable — module replacement without PG intervention
• 24 V DC supply operation
• Compact mountable design for rack or cabinet integration

Technical Specifications

• Article Number: 6ES7153-4AA01-0XB0
• Type: SIMATIC DP Interface Module (IM 153-4 PN IO)
• System: ET 200M / S7-300 compatible
• Communication: PROFIBUS DP
• Maximum Modules: 12 I/O or function modules
• Supply Voltage: 24 V DC
• Mounting: DIN-rail or rack installation
• Service Features: Module change without reprogramming device

Applications

Used for distributed automation systems requiring remote I/O connectivity. Suitable for production lines, process automation, machine control, building management systems, retrofits and modular expansion of existing S7-300 installations. Ideal where scalability, quick maintenance and PROFIBUS connectivity are required.
