Siemens Simatic DP IM 154-4 PN Profinet interface module

Product Overview

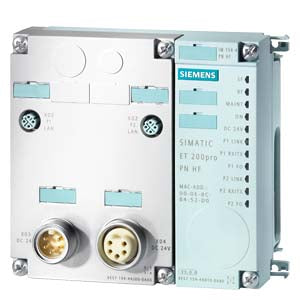

The SIMATIC DP PROFINET Interface Module IM 154-4 PN High Feature delivers robust distributed I/O connectivity for demanding industrial automation applications in harsh environments. This high-feature interface module is specifically designed for ET 200 PRO systems, providing reliable PROFINET communication with integrated switch functionality and advanced diagnostic capabilities. The module includes a termination module and supports IP65/IP67 protection ratings for direct field installation outside the control cabinet.

Key Features

• High Feature Interface: Advanced IM 154-4 PN interface module optimized for ET 200 PRO systems with comprehensive diagnostic capabilities
• Integrated Switch: Built-in Ethernet switch eliminates the need for external networking equipment and simplifies system wiring
• Rugged Design: IP65/IP67 protection rating for direct installation in harsh industrial environments without control cabinets
• Advanced Diagnostics: Comprehensive diagnostic functions with LED status indicators for enhanced troubleshooting and maintenance
• Included Termination Module: Complete solution with integrated termination module for immediate installation
• PROFINET IO Communication: High-speed PROFINET communication at 100 Mbit/s for efficient data exchange
• PROFIsafe Support: Integrated safety communication capabilities for safety-critical applications
• Modular System: Supports up to 16 I/O modules for scalable automation solutions

Technical Specifications

• Interface Module: IM 154-4 PN High Feature | Dimensions: 135mm x 130mm x 60mm (W x H x D)
• Supply Voltage: 20.4-28.8V DC (24V nominal) | Weight: 0.540 kg
• Communication Speed: 100 Mbit/s PROFINET | Protection Rating: IP65/IP67
• Module Capacity: Up to 16 I/O modules | Operating Temperature: -25°C to +55°C
• Mounting: Surface/Wall mounting, DIN rail compatible | Package Dimensions: 14.20 x 16.40 x 7.40 cm
• Protocols: PROFINET IO, PROFIsafe | System: ET 200 PRO distributed I/O
• Included: Termination module | Required Separately: Connection module (6ES7194-4A.00-0AA0)

Required Additional Components

Connection Module (Order Separately): 6ES7194-4A.00-0AA0

• Function: Essential for establishing connectivity and data exchange within the distributed I/O system
• Compatibility: Required for proper operation with ET 200 PRO modules
• Installation: Must be ordered separately to complete the interface module setup

Applications & Integration

Primary Applications:

• Distributed I/O systems in harsh industrial environments requiring IP65/IP67 protection
• Manufacturing automation with direct field installation outside control cabinets
• Process control applications needing robust PROFINET communication with integrated switching
• Machine automation requiring advanced diagnostic capabilities and high-speed data transfer
• Safety-critical applications utilizing PROFIsafe communication protocols

System Compatibility:

• Compatible with SIMATIC S7 controllers via PROFINET IO communication
• Integration with TIA Portal and STEP 7 engineering environments
• Support for various ET 200 PRO I/O modules (digital, analog, motor starters)
• Seamless connectivity with existing PROFINET networks and infrastructure
• Compatible with Siemens automation ecosystem and third-party PROFINET devices

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4025515075127 | UPC: 662643400991
• RoHS Compliant: Since March 31, 2008 | WEEE: Take-back obligation applicable
• REACH: Contains lead, lead monoxide, silicic acid lead salt, and other substances above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: 9N9999
• Environmental: Suitable for harsh industrial environments with IP65/IP67 protection
• Safety: Suitable for safety functions with PROFIsafe protocol support

Package Contents

• 1 × SIMATIC DP PROFINET Interface Module IM 154-4 PN High Feature, 1 × Termination Module, technical documentation, installation accessories

Important Note: Connection Module (6ES7194-4A.00-0AA0) must be ordered separately for complete system functionality.

Download existing graphical data for this product:

• Product Information Page
• Official Support Documentation
• CAD Models and 3D Data
• ET 200 PRO System Manual
• PROFINET Interface Module Manual
