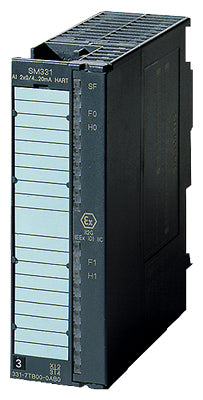

Siemens SIMATIC DP HART Analog input, SM331, 20-pole, 4-20mA Part number 6ES7331-7TB10-0AB0

Product Overview

The Siemens 6ES7331-7TB10-0AB0 is a SIMATIC SM 331 HART analog input module designed for use in the ET 200M distributed I/O system. It provides two analog current inputs (0/4–20 mA) with integrated HART protocol support, enabling both process value acquisition and digital communication with HART-enabled field devices.

Key Features

• Analog input module with HART capability
• 2 current inputs: 0/4–20 mA
• HART Version 5.0 communication support
• Designed for ET 200M via IM153-2 interface
• Single 20-pole front connector
• High-resolution analog signal acquisition
• Ideal for process instrumentation and distributed automation

Technical Specifications

• Article Number: 6ES7331-7TB10-0AB0
• Product Series: SIMATIC SM 331 HART
• Channels: 2 analog inputs, 0/4–20 mA
• Communication: HART Protocol Version 5.0
• Resolution: 16-bit
• Interface: ET 200M via SIMATIC DP (IM153-2)
• Front Connector: 1 × 20-pole
• Module Width: approx. 40 mm
• Height: approx. 125 mm
• Depth: approx. 120 mm

Compliance & Certifications

• Siemens industrial automation quality standard
• Suitable for use in process instrumentation and HART-enabled automation environments

Applications

Used for acquiring analog process signals from transmitters while simultaneously enabling HART digital communication. Ideal for distributed I/O stations in ET 200M systems across process industries such as chemicals, water treatment, manufacturing, and utilities.
