Siemens Simatic DP Electronics module for ET 200S, 4AI TC Part number 6ES7134-4JD00-0AB0

Product Overview

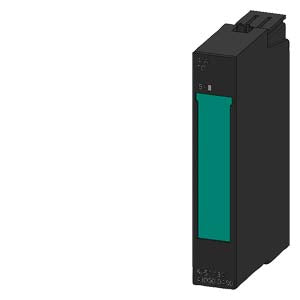

SIMATIC DP Electronics module designed for ET 200S distributed I/O system featuring 4 analog thermocouple inputs with ±80 mV measurement range. This compact 15 mm width module delivers 15-bit plus sign resolution with integrated SF LED for group fault indication.

Key Features

• 4 analog thermocouple inputs (4 AI TC)
• Input range: ±80 mV
• Resolution: 15 bit + sign
• Compact design: 15 mm width
• Group fault indication via SF LED
• Compatible with ET 200S distributed I/O system
• SIMATIC DP communication protocol

Technical Specifications

• Article Number: 6ES7134-4JD00-0AB0
• Input Type: Thermocouple/mV inputs
• Number of Channels: 4
• Signal Range: ±80 mV
• Resolution: 15 bit + sign
• Module Width: 15 mm
• Communication: SIMATIC DP
• Net Weight: 0.043 kg

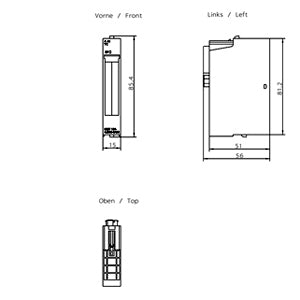

• Packaging Dimensions: 6.20 x 9.00 x 2.20 cm
• Country of Origin: China
• EAN: 4025515078074
• UPC: 040892549614

Compliance & Safety

• RoHS compliant since 25.11.2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: ECCN: N / AL: N

• Standard product classification with return guidelines applicable

Applications Ideal for temperature monitoring applications in industrial automation systems requiring precise thermocouple signal processing. Compatible with standard thermocouple types and mV signal sources in distributed I/O configurations.

Important Notes

• This is a spare part - please visit the Spares & Service section for more information
• For technical assistance, contact your local Siemens office
• Product has been cancelled since October 1, 2023 - availability may be limited
• Requires appropriate terminal modules for ET 200S system integration
