Product Overview

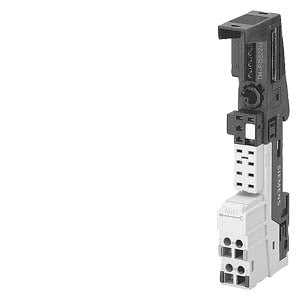

SIMATIC DP, 5 terminal modules TM-P15S23-A0 for ET 200S for power modules, 15 mm width, Screw terminals 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted, 5 units per packing unit. This terminal module is designed for use with SIMATIC ET 200S distributed I/O systems, specifically for power module applications requiring screw terminal connections.

Key Features

Terminal Configuration:

• 5 terminal modules per packing unit
• TM-P15S23-A0 designation for power module compatibility
• 15 mm width for compact installation
• Screw terminals for secure and reliable connections

Electrical Specifications:

• Terminal Connections: 2x3 terminal connections
• AUX Access: Terminal access to AUX1
• AUX1 Configuration: AUX1 interrupted
• Terminal Type: Screw terminals for field wiring

System Compatibility:

• Designed for SIMATIC ET 200S distributed I/O system
• Compatible with ET 200S power modules
• PROFIBUS DP communication support

Technical Specifications

Physical Characteristics:

• Net Weight: 0.338 kg (for 5-unit pack)
• Width: 15 mm per module
• Packaging Dimensions: 15.90 x 17.80 x 5.00 cm
• Packaging Quantity: 5 units per pack

Terminal Specifications:

• Terminal Type: Screw terminals
• Connection Configuration: 2x3 terminal connections
• AUX Terminal Access: Yes, to AUX1
• AUX1 Status: Interrupted configuration
• Wiring Method: Screw-type connections for field installation

System Integration:

• Compatible System: SIMATIC ET 200S
• Module Type: Power modules
• Communication: PROFIBUS DP
• Installation: DIN rail mounting
• Operating Voltage: AC 120V (50/60 Hz), DC 24V

Standards and Compliance:

• RoHS Compliance: Yes, since 01.01.2006
• WEEE Take-Back Obligation: Yes
• Export Control: ECCN: N / AL: N
• Country of Origin: Poland

Product Information:

• EAN: 4025515078883
• UPC: Not available
• Packaging Quantity: 5 pieces
• Quantity Unit: Package

Equivalent Product Options

Alternative Product:

• Part Number: 6ES7193-4CC30-0AA0
• Description: SIMATIC DP, Terminal module TM-P15S23-A1 for ET 200S (Individual unit)
• Packaging: VPE 1 (1 unit per package)

Product Comparison:

• Same terminal configuration and specifications
• Compatible with existing ET 200S installations
• Individual unit packaging vs. 5-unit pack
• AUX1 continuous vs. AUX1 interrupted configurations available

Applications

The ET 200S screw terminal modules are designed for:

• Distributed I/O systems in industrial automation
• Power module applications in ET 200S systems
• PROFIBUS DP communication networks
• Factory automation installations requiring screw terminals
• Process control applications
• Machine control systems
• Field installations requiring robust connections

Installation and Wiring

Terminal Features:

• Screw terminals for reliable field wiring
• 2x3 terminal connection configuration
• AUX1 terminal access for auxiliary connections
• AUX1 interrupted configuration for specific applications

Electrical Specifications:

• Input Voltage: AC 120V (50/60 Hz), DC 24V
• Maximum Input Current: 10A (AC 50 Hz)
• Dimensions: 43mm (D) x 132mm (H)
• Protection Category: ATEX gas-ex-protection, Cat. 3G

System Integration:

• Compatible with ET 200S power modules
• 15 mm width for space-efficient installation
• DIN rail mounting system
• PROFIBUS DP communication interface

Technical Support

Support Services:

• Comprehensive product documentation available
• Application engineering support
• Compatibility verification services
• System integration assistance

Installation Support:

• Detailed wiring diagrams
• Configuration guidelines
• Troubleshooting documentation
• Technical hotline support
