Product Overview

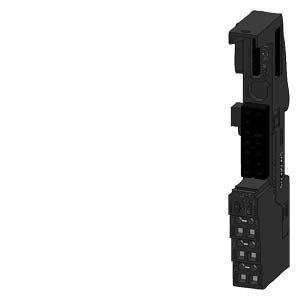

SIMATIC DP, 5 terminal modules TM-P15C23-A0 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted, 5 units per packing unit. This terminal module is designed for use with SIMATIC ET 200S distributed I/O systems, specifically for power module applications.

Key Features

Terminal Configuration:

• 5 terminal modules per packing unit
• TM-P15C23-A0 designation for power module compatibility
• 15 mm width for compact installation
• Spring-type terminals (Cage Clamp) for secure connections

Electrical Specifications:

• Terminal Connections: 2x3 terminal connections
• AUX Access: Terminal access to AUX1
• AUX1 Configuration: AUX1 interrupted
• Terminal Type: Spring-type (Cage Clamp) terminals

System Compatibility:

• Designed for SIMATIC ET 200S distributed I/O system
• Compatible with ET 200S power modules
• PROFIBUS DP communication support

Technical Specifications

Physical Characteristics:

• Net Weight: 0.299 kg (for 5-unit pack)
• Width: 15 mm per module
• Packaging Dimensions: 16.00 x 17.90 x 5.00 cm
• Packaging Quantity: 5 units per pack

Terminal Specifications:

• Terminal Type: Spring-type (Cage Clamp)
• Connection Configuration: 2x3 terminal connections
• AUX Terminal Access: Yes, to AUX1
• AUX1 Status: Interrupted configuration

System Integration:

• Compatible System: SIMATIC ET 200S
• Module Type: Power modules
• Communication: PROFIBUS DP
• Installation: DIN rail mounting

Standards and Compliance:

• RoHS Compliance: Yes, since 01.01.2006
• WEEE Take-Back Obligation: Yes
• Export Control: ECCN: N / AL: N
• Country of Origin: Poland

Product Information:

• EAN: 4025515078906
• UPC: Not available
• Packaging Quantity: 5 pieces
• Quantity Unit: Package

Replacement Information

Equivalent Product:

• Part Number: 6ES7193-4CD30-0AA0
• Description: SIMATIC DP, Terminal module TM-P15C23-A0 for ET 200S (Individual unit)
• Packaging: VPE 1 (1 unit per package)

Product Options:

• Direct equivalent with 6ES7193-4CD30-0AA0
• Same terminal configuration and specifications
• Compatible with existing ET 200S installations
• Individual unit packaging vs. 5-unit pack

Applications

The ET 200S terminal modules were designed for:

• Distributed I/O systems in industrial automation
• Power module applications in ET 200S systems
• PROFIBUS DP communication networks
• Factory automation installations
• Process control applications
• Machine control systems

Installation and Wiring

Terminal Features:

• Spring-type (Cage Clamp) terminals for tool-free wiring
• 2x3 terminal connection configuration
• AUX1 terminal access for auxiliary connections
• AUX1 interrupted configuration for specific applications

System Integration:

• Compatible with ET 200S power modules
• 15 mm width for space-efficient installation
• DIN rail mounting system
• PROFIBUS DP communication interface

Support and Service

Technical Support:

• Comprehensive product documentation available
• Application engineering support
• Compatibility verification services
• System integration assistance

REACH Compliance Notice

This product contains Lead in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional information.
