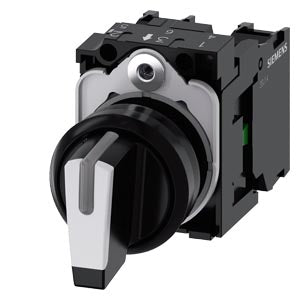

Siemens Selector switch, illuminable, 3 positions, 22mm

Product Overview

This SIRIUS ACT illuminable selector switch is designed for versatile switching and control applications in industrial environments. The 22mm round selector switch features a high-quality plastic construction with a white actuator and short handle design, providing reliable operation across three distinct positions. This complete unit includes illumination capability for enhanced visibility, dual 1 NO contacts for flexible control configurations, and screw terminals for secure installation and wiring.

Key Features

• Size: 22mm diameter round design
• Construction: High-quality plastic body with white selector handle
• Switch Type: Short selector switch with illumination capability
• Switch Positions: 3 positions (I-O-II) with latching operation
• Position Angles: 10:30h/12h/13:30h (45° increments)
• Contact Configuration: Dual 1 NO + 1 NO contacts for enhanced functionality
• Terminal Type: Screw terminals for secure connections
• Protection Rating: IP66/IP67/IP69K - providing protection against dust, water immersion, and high-pressure cleaning

Technical Specifications

• Article Number: 3SU1100-2BL60-1NA0
• EAN: 4011209957602
• Series: SIRIUS ACT 3SU11
• Net Weight: 0.063 kg
• Installation Diameter: 22mm
• Actuator Type: Short handle selector switch
• Handle Color: White with black insert
• Front Ring: Plastic, black color
• Operating Temperature Range: -25°C to +70°C
• Maximum Voltage: 500V AC/DC
• Contact Configuration: 2NO (Two Normally Open contacts)
• Maximum Current: 10A
• Angle of Throw: 45° between positions
• Packaging: 60.00 x 100.00 x 30.00 mm
• Country of Origin: Germany

Electrical Specifications

• Contact Arrangement: 1 NO + 1 NO (dual normally open contacts)
• Terminal Connection: Screw terminal
• Voltage Rating: Up to 500V AC/DC
• Current Rating: 10A maximum
• Contact Material: Silver alloy for reliable conductivity
• Number of Command Points: 1
• Switching Function: Stay-put (maintained/latched) operation
• Illumination: Yes (illuminable design)

Position Configuration

• Position I: 10:30h (-45°) - First contact activated
• Position O: 12h (0°) - Neutral/off position
• Position II: 13:30h (+45°) - Second contact activated
• Operation Type: Maintained/latched in all positions
• Handle Design: Short handle with ergonomic operation

Compliance & Certifications

• RoHS Compliance: Compliant since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back: Yes, compliant with 2012/19/EU directive
• Protection Rating: IP66/IP67/IP69K
• IP Rating: IP20 (terminals)

Applications Part of the SIRIUS ACT portfolio, this illuminable selector switch is ideal for applications requiring multi-position control with visual status indication. The 3-position I-O-II configuration with dual 1 NO contacts provides excellent flexibility for controlling multiple circuits or providing redundant switching capabilities. Perfect for motor control applications, process selection, mode switching, and automation systems where operators need clear visual feedback of switch position and status. The illumination capability enhances visibility in low-light industrial environments.

Product Series Information Under the brand name SIRIUS ACT, Siemens offers a comprehensive portfolio of selector switches and signaling devices with global product approvals. The innovative snap-on concept makes installation easy and can be done with one hand without special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. The rugged devices are suitable for industrial use and outdoor applications, with resistance to dust, oils, and caustic solutions. High-pressure cleaning is possible without compromising reliable operation.
